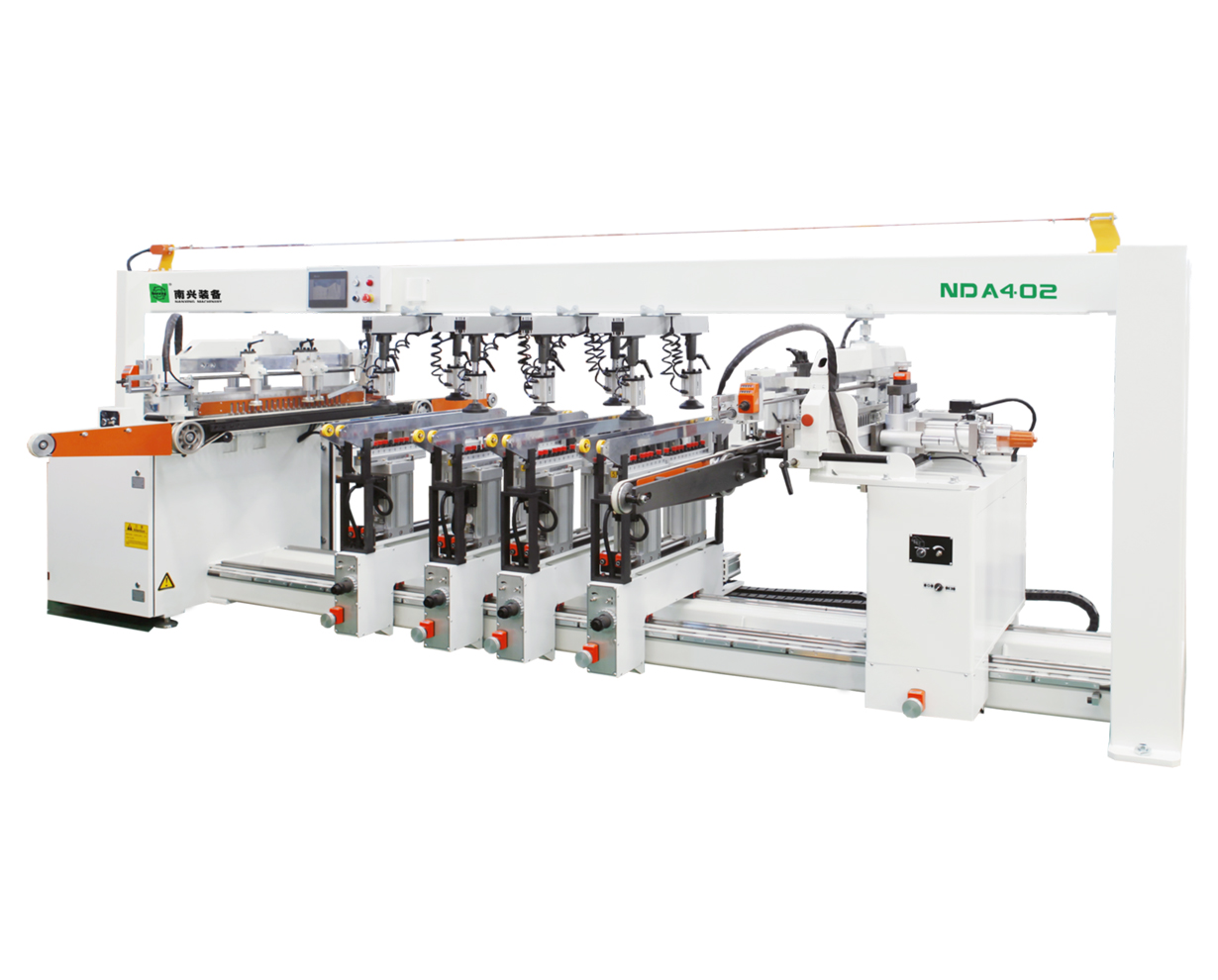

Nanxing Multi Rows Boring Machine NDA402

₹1,800,000.00 ₹2,250,000.00
Warranty
12 Months
Country of origin
China
GST Extra
18%
Available on Request

TECHNICAL DATA

• Max panel width : 2650mm

• Min. panel width : 250mm

• Max. panel thickness : 70mm

• Lower drilling rows qty. : 4

• Horizontal drilling rows qty : 2

• Spacing of drills : 32mm

• Max. vertical drilling depth : 70mm

• Max. horizontal drilling depth : 40mm

• Total power : 13.4kw

• Approx. weight : 2,400kg

• Overall dimension : 4,800*2,635*1,575 mm

TEST

Boring Machine

Nanxing Multi Rows Boring Machine NDA402

Multi-spindle boring precision. Every hole, every time.

QUICK SPECS

2650mm

Max Panel

13.4kw

Total Power

13.4kw

Power

2,400kg

Weight

12 mo / 2000 hr

Warranty

HOW IT WORKS

01

Load Board

02

Align Stops

03

Drill Holes

04

Check Pitch

05

Stack Output

KEY FEATURES
— Min. panel width : 250mm
— Max. panel thickness : 70mm
— Lower drilling rows qty. : 4
— Max. vertical drilling depth : 70mm
— Max. horizontal drilling depth : 40mm
— Approx. weight : 2,400kg
FEATUREADVANTAGEBENEFIT TO YOU
SAFETY
CE-certified safety designMeets international safety standardsYou get a machine built for operator safety
Emergency stop circuitInstant power cut-off on activationYou get immediate halt in emergencies
Enclosed moving partsReduces contact with rotating componentsYou get a safer working environment
QUALITY
Precision-engineered componentsTight tolerances on all machined partsYou get accurate, consistent output every shift
Rigid steel frame constructionEliminates vibration during operationYou get cleaner cuts and better surface finish
Quality control sensorsAuto-detects deviation in real timeYou get fewer rejects and less rework
USER FRIENDLY
Simple control interfaceEasy-to-read display and controlsYou get quick operator training and confident use
Centralized lubrication pointsAll grease points in one locationYou get faster, easier routine maintenance
Clear diagnostic displaysOn-screen error codes and guidanceYou get quick fault identification and resolution
PRODUCTIVITY
High-speed processing capabilityMore parts per shift than manual methodsYou get significantly higher daily output
Fast changeover designQuick size and program changesYou get more productive hours per working day
Reliable cycle-time consistencySame output rate shift after shiftYou get predictable delivery schedules for customers
ROI
Reduced labour dependencyOne operator can run the machine aloneYou save on staffing costs and wage bills
Lower material wastePrecision cuts reduce offcut lossesYou save on raw material spend every month
Durable long-life componentsExtended service intervalsYou save on spare parts and maintenance costs
TRUST
Authorised Nanxing DistributorDirect factory support and genuine partsYou get the real machine with full manufacturer backing
caple.in — In business since 197450+ years of woodworking machinery expertiseYou get advice from engineers who know the trade
12-month / 2000-hour warrantyWhichever comes first — no ambiguityYou get protected investment from day one
Trained service teamFactory-trained engineers for installation and supportYou get fast, knowledgeable on-site support
Pan-India support networkService coverage across India with multiple demo centresYou get local support wherever your factory is
TECHNICAL SPECIFICATIONS
Max panel width2650mm
Min. panel width250mm
Max. panel thickness70mm
Lower drilling rows qty.4
Horizontal drilling rows qty2
Spacing of drills32mm
Max. vertical drilling depth70mm
Max. horizontal drilling depth40mm
Total power13.4kw
Approx. weight2,400kg
Overall dimension4,800*2,635*1,575 mm
FREQUENTLY ASKED QUESTIONS
What is the minimum pitch between drill holes?
The standard pitch is 32 mm to match the European cabinet system. Some models support variable pitch — check the spec table above.
How many spindles does this machine have?
Refer to the spindle count in the Quick Specs section above. Multi-spindle models allow simultaneous vertical and horizontal drilling.
Can I drill both faces of a panel in one pass?
Some models support double-sided drilling. Refer to the product name and specification table to confirm this capability.
What board dimensions can the machine handle?
Refer to the panel size range listed in the Quick Specs and Technical Specifications sections above.
What is the warranty period?
12 months or 2000 operating hours, whichever comes first.
Where can I find the full manual and spare parts list for the NDA402?
Full documentation for the NDA402 is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NDA402 require?

The NDA402 requires an air supply at 6 bar with approximately 10 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NDA402?

The NDA402 draws approximately 18 HP (13.4 kW) total power. Use a 25-amp 3-phase 415V supply with separate earthing and a 20 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NDA402?

The NDA402 needs approximately 2,060 CFM (3,500 CMH) dust extraction through standard dust ports. We recommend the Dust Collector AXC 3HP | 3000-3500 CMH.

What is the weight of the NDA402?

The NDA402 weighs 2,400kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
