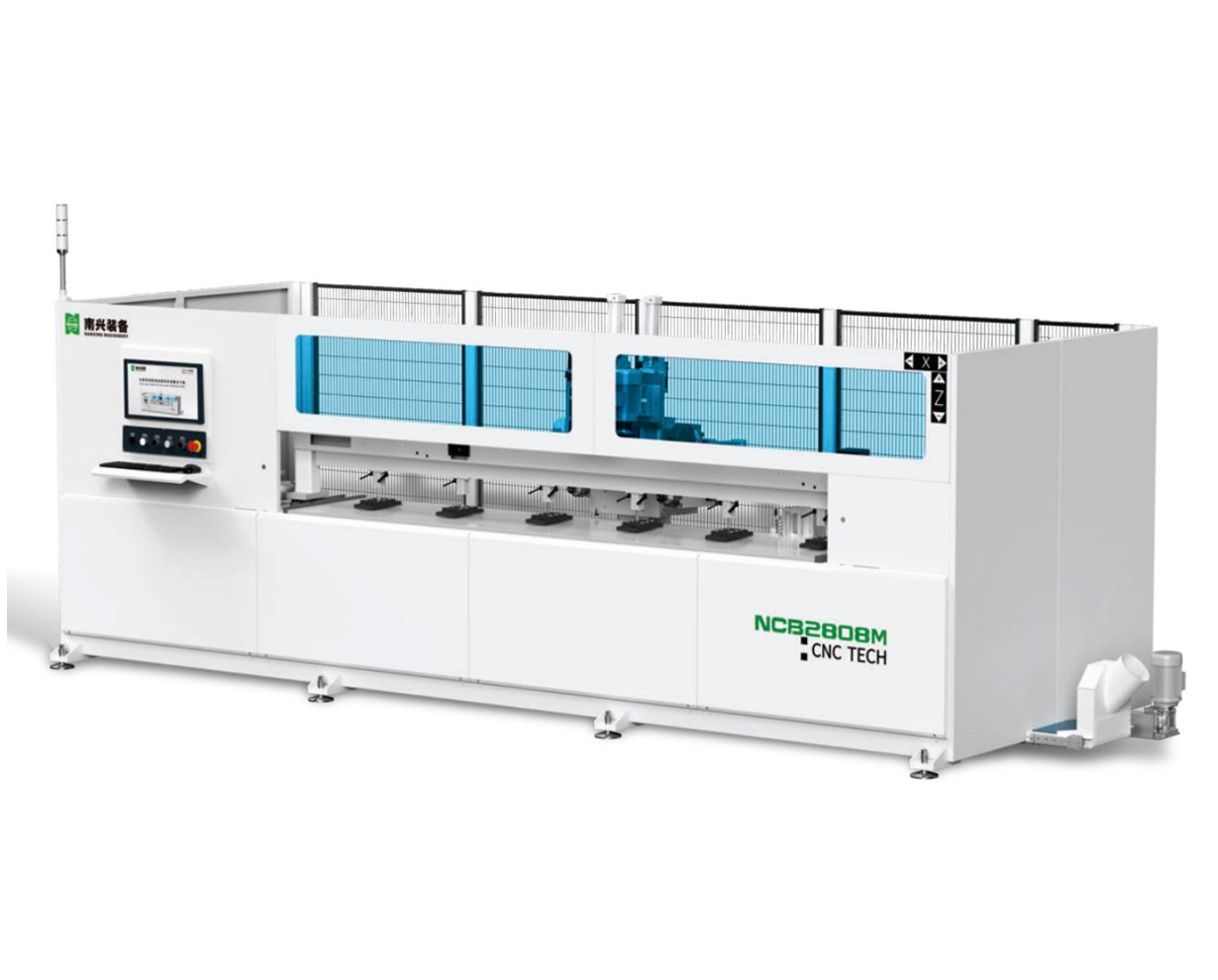

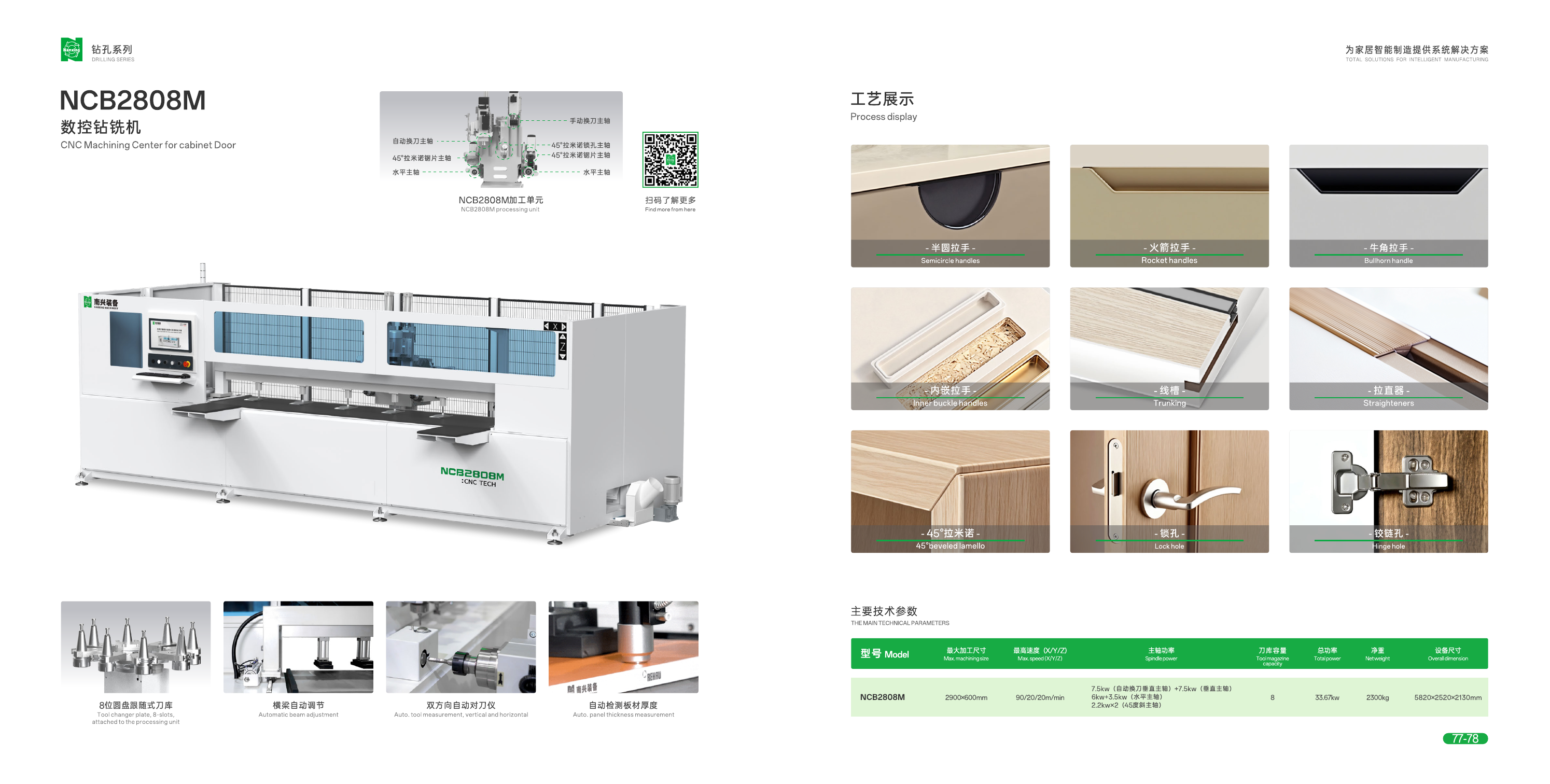

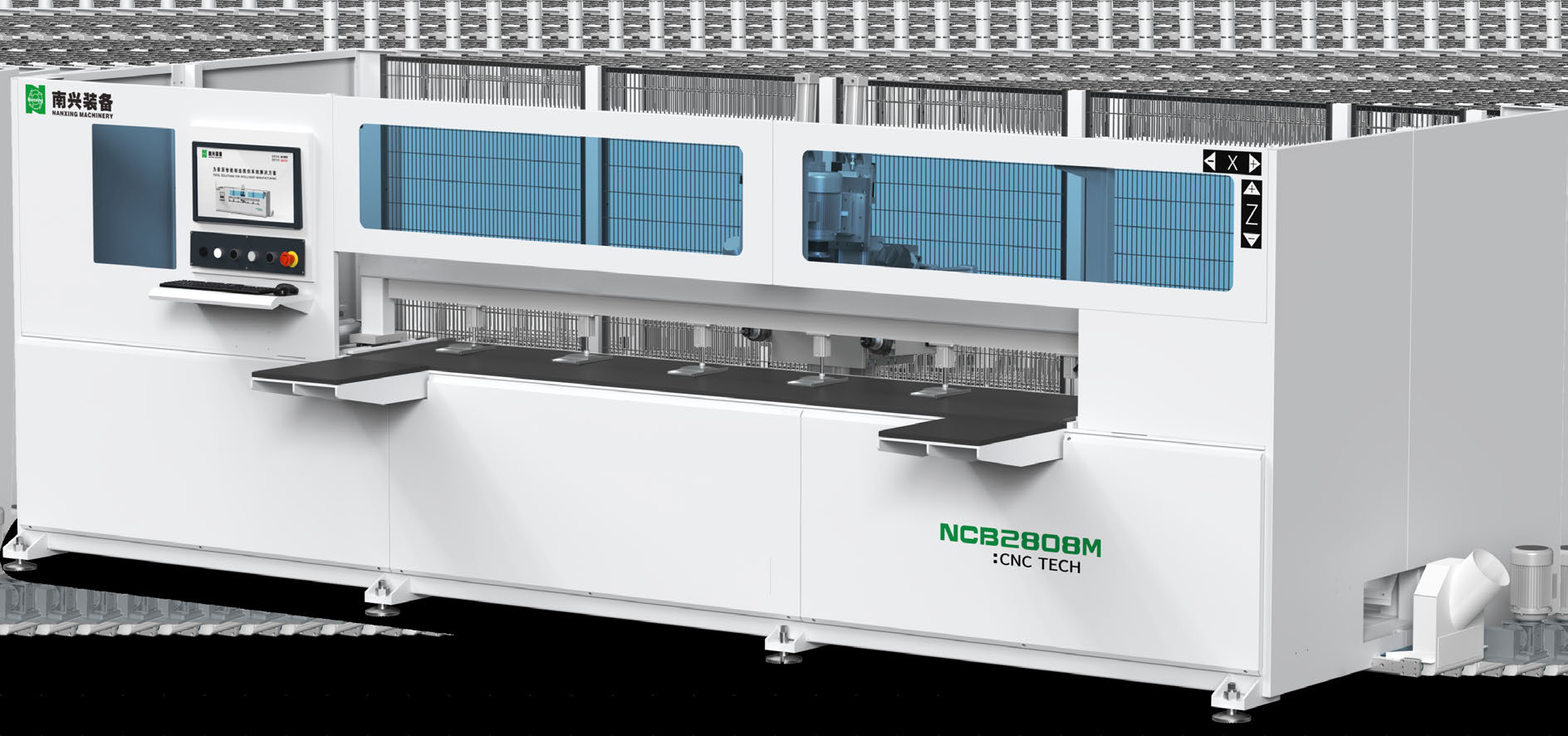

Nanxing CNC Machining Center for Cabinet Door NCB2808M

Name: Nanxing CNC Machining Center for Cabinet Door NCB2808M
Brand: Nanxing
SKU: NCB2808M
Price: 1900000.0 INR
Availability: OutOfStock

Features

• Movement of each axis

• X direction : Rack and Pinion

• Y.Z direction : Ball screw

• Servo motors : Movement of each axis driven by high precise servo motor, 90/20*20m/min

• Auto greasing

• Auto grease transmission mechanism

• Oil pump category: electric grease pump

• Auto movable beam by cylinder

• Beam moves automatically by cylinder according to different process

• Sectional zone pressing

• Top presser and back positioning bar

• Overwide 6 pcs of top pressers

• Back positioning bar rises automatically

• 2 Working areas

• 2 working stations to process alternately

• max processing size 2800*800mm

• Distance to floor: 980mm,

• Auto board thickness detection

• For accurate processing

• Processing unit

• Vertical spindle 7.5Kw auto tool change

• Horizontal milling spindle 6Kw

• Horizontal drilling spindle 3.5Kw

• 7.5kw vertical main spindle

• 2 pcs 2.2kw bevel direction main spindles

• Max processing size: 2900*600mm

• Mini processing size: 250*200mm

• 6-slot Line tool changer

• 6-position line tool magazine , ISO30 tool collet

• Cable chain

• High-quality cable chain

• Two tool setting gauges

• One gauge in vertical direction,

• The other one in horizontal direction

• Automatic tool setting

• IPC control

• Powerful, IPC control, window system

• Intelligent operating system

• User friendly, with online 3D graphics editing and simulation

• Support CSV, BAN, and XML formats, EXCEL file import, DXF file import

• Bar code scanner

• Scan bar-code to call relevant processing

• programs

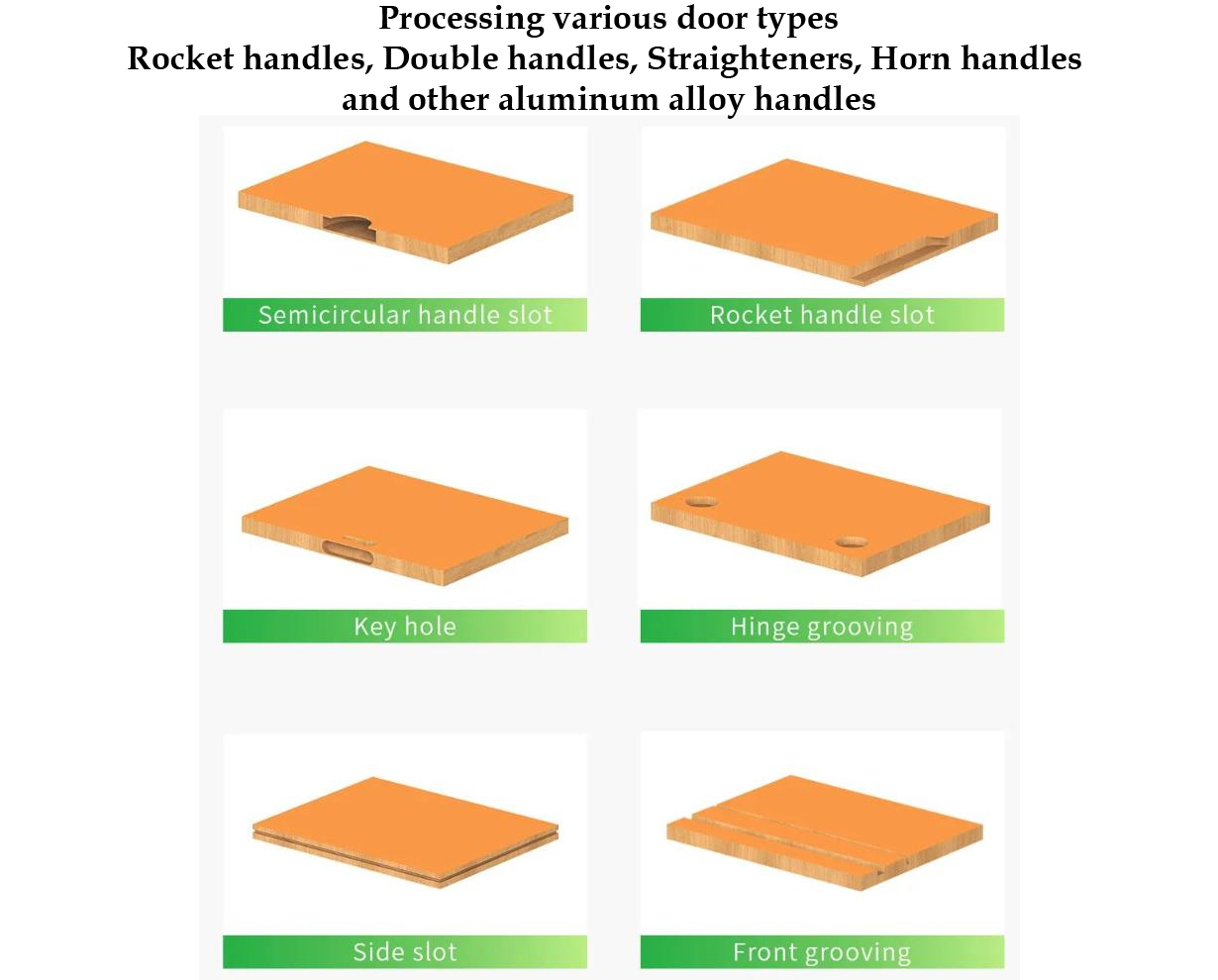

• Processing various door types

• Rocket handles, double handles, straighteners, horn handles and other aluminum alloy handles

• Control cabinet

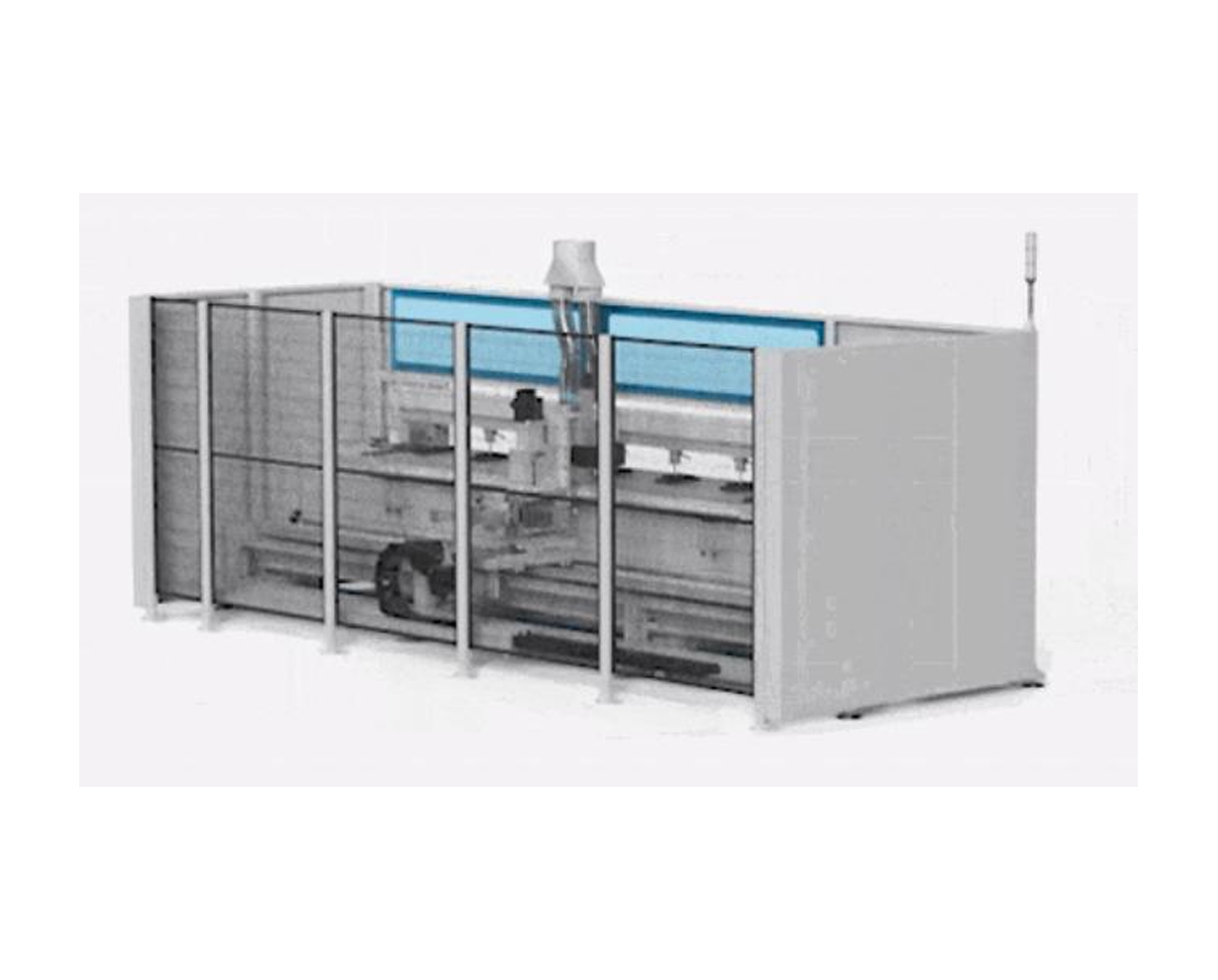

• Safety fence

• Machine is standard with safety fence ensures the safety of operators

Technical Specifications

• Panel width : 200-800mm

• Panel length : 250-2800mm

• Working range : X axis :250-2800mm

• Working range : Y axis: 160mm

• Working range : Z axis: 60mm

• Travelling speed : X axis: 90m/min

• Travelling speed : Y axis: 90m/min

• Travelling speed : Z axis: 20m/min

• Moving beam range : 0-160mm

• Working table : Area: 2,660mmx420mm

• Working table : Height: 980mm

• Main spindle Qty : 5

- Main spindle Power

• 7.5kw vertical spindle

• 6kw horizontal spindle

• 3.5kw horizontal spindle

• 2*2.2kw bevel spindles

• Rotating speed : 18000rpm

• Tool change Qty : .6 Type [ISO 30]

• Drilling depth : 60mm

• Power supply : 3PH 415V / 50 Hz

• Total power : 33.67kw

• Dust collector Dia. : 150mm*2

• Floor space LxWxH : 5,820x2,520x2,000 mm

• Net weight : 2,200kg

Available on Request

₹1,900,000.00 ₹2,375,000.00

Customize

Warranty

12 Months

Country of origin

China

YouTube Video 1

https://youtu.be/GpsUHAeM7Lk

Specifications

GST Extra

18%

TEST

Boring Machine

Nanxing CNC Machining Center for Cabinet Door NCB2808M

Multi-spindle boring precision. Every hole, every time.

QUICK SPECS

Feed Speed

33.67kw - Dust collector Dia. : 150mm*2 - Floor space LxWxH : 5

Total Power

7.5kw

Power

18000

Speed

12 mo / 2000 hr

Warranty

HOW IT WORKS

Load Board

Align Stops

Drill Holes

Check Pitch

Stack Output

KEY FEATURES

— Movement of each axis

— X direction : Rack and Pinion

— Y.Z direction : Ball screw

— Servo motors : Movement of each axis driven by high precise servo motor, 90/20*20m/min

— Auto grease transmission mechanism

— Oil pump category: electric grease pump

— Auto movable beam by cylinder

— Beam moves automatically by cylinder according to different process

— Sectional zone pressing

— Top presser and back positioning bar

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
CE-certified safety design	Meets international safety standards	You get a machine built for operator safety
Emergency stop circuit	Instant power cut-off on activation	You get immediate halt in emergencies
Enclosed moving parts	Reduces contact with rotating components	You get a safer working environment
QUALITY
Servo motor drive system	Precise, repeatable positioning	You get consistent quality across every board
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
PRODUCTIVITY
High feed speed (20)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
X direction	Rack and Pinion
Y.Z direction	Ball screw
Servo motors	Movement of each axis driven by high precise servo motor, 90/20*20m/min
Oil pump category	electric grease pump
Distance to floor	980mm,
Max processing size	2900*600mm
Mini processing size	250*200mm
Panel width	200-800mm
Panel length	250-2800mm
Working range	X axis :250-2800mm
Travelling speed	X axis: 90m/min
Moving beam range	0-160mm
Working table	Area: 2,660mmx420mm
Main spindle Qty	5
Rotating speed	18000rpm
Tool change Qty	.6 Type [ISO 30]
Drilling depth	60mm
Power supply	3PH 415V / 50 Hz
Total power	33.67kw
Dust collector Dia.	150mm*2

FREQUENTLY ASKED QUESTIONS

What is the minimum pitch between drill holes?

The standard pitch is 32 mm to match the European cabinet system. Some models support variable pitch — check the spec table above.

How many spindles does this machine have?

Refer to the spindle count in the Quick Specs section above. Multi-spindle models allow simultaneous vertical and horizontal drilling.

Can I drill both faces of a panel in one pass?

Some models support double-sided drilling. Refer to the product name and specification table to confirm this capability.

What board dimensions can the machine handle?

Refer to the panel size range listed in the Quick Specs and Technical Specifications sections above.

What is the warranty period?

12 months or 2000 operating hours, whichever comes first.

Where can I find the full manual and spare parts list for the NCB2808M?

Full documentation for the NCB2808M is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NCB2808M require?

The NCB2808M requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NCB2808M?

The NCB2808M draws approximately 45 HP (33.67 kW) total power. Use a 63-amp 3-phase 415V supply with separate earthing and a 40 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NCB2808M?

The NCB2808M needs approximately 6,090,781 CFM (10,348,237 CMH) dust extraction through Ø660mm × 420 + Ø150mm × 2. We recommend the Dust Collector AXC 5HP | 4500-5000 CMH.

What is the weight of the NCB2808M?

The NCB2808M weighs 2,200kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
