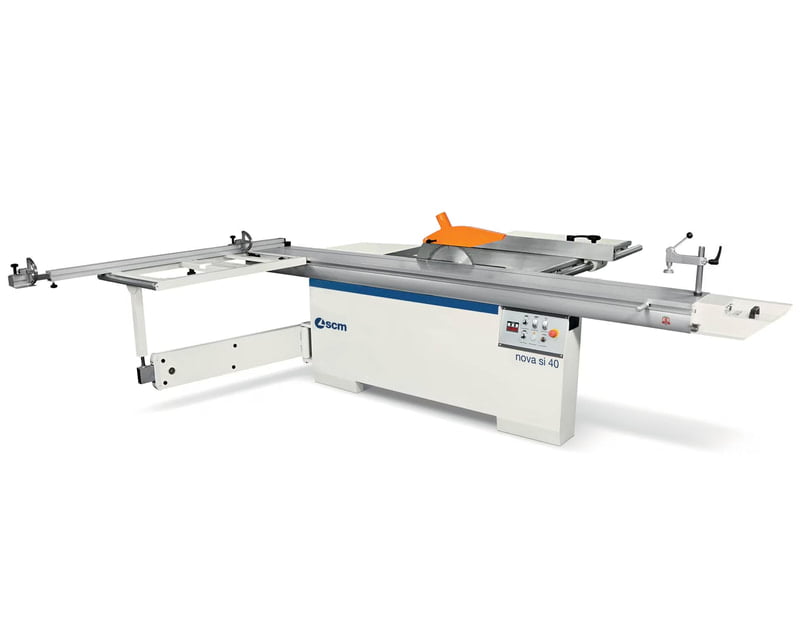

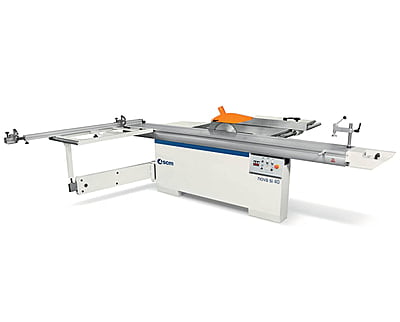

Scm Circular Saw / Panel Saw NOVA SI40 With Tilting Blade & Digital readout
₹1,025,000.00 ₹1,281,250.00
Available on Request
SCM Panel Saw Machine with Programmable Parallel Fence with 1270 mm ripping capacity, 2 Digital readout on Crosscut fence, 3 Variable speed & panel optimization capability with Optimizer/Sequencer App for Tablet: SCM Thundercut:
FEATURES:
Optimizer/Sequencer App for Tablet: SCM Thundercut:
- Application to be downloaded from the App Store or Paly Store on
compatible tablets (mobile devices) equipped with
iPadOS or Android operating systems.
- It can be activated using the QR code supplied with the machine.

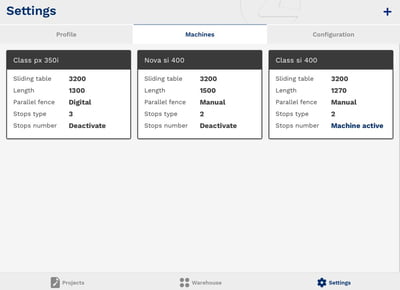

* manage your machine stock and the material and panel magazine

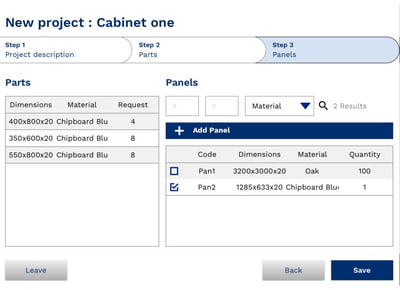

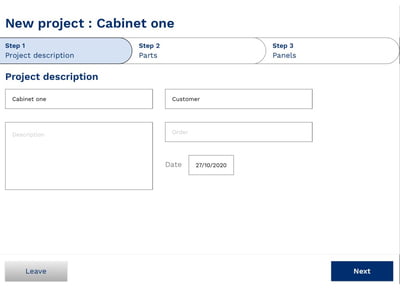

* create and modify projects, import projects from the main furniture
design software ("cpout" file format), import cutting lists

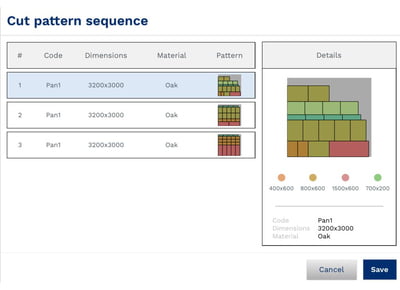

* optimize cutting lists, choosing from one or more proposals of the
optimization software integrated into the App.

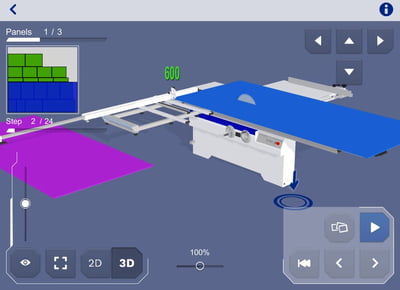

* set the machine correctly for each cut to be made, thanks to the
simple and intuitive graphics of the 3D sequencer that guides the
operator at each step.
* print labels with bar code to identify the various parts, thanks to the
Bluetooth connection with compatible label printers.
- Cast iron saw unit, with lifting system by means of "dove-tail" guideways and tilting on high rigidity sliding side
trunnions, complete with scoring unit with independent motor and external setting up
- Anodized aluminium alloy carriage (dimensions 360 x 3200 mm) sliding on hardened steel guides, which are fixed
on the carriage by means of mechanical bending system
- Squaring frame (dimensions 1200 x 650 mm) with:
* telescopic fence with 2 flip-over stops and metric rule tilted towards the operator
* eccentric clamp
* swinging arm support
* idle roller to facilitate the panel loading/unloading
- Dedicated saw parallel fence with:
*"high rigidity" cast iron fence support
* micrometric adjustment and cam-locking system
* rectified steel round sliding bar, 45 mm diameter
- Readout of sawblades tilt on the machine front side
- Version with maximum squaring stroke 3200 mm
Powered parallel fence with electronic programmer (1 axis)
complete with:
- position reading by means of encoder
- movement through recirculating ball screws
- continuously adjustments by means of pushbutton
- possibility of incremental positioning
- exclusion of fence
- 1270 mm cutting width
Squaring fence with no. 2 LCD readouts for stops position
- Each stop with micrometric adjustment is equipped with
electronic digital readout with detecting system on magnetic band
and readout on LCD display.
TECHNICAL DATA:
- Max cutting height at 90���? (mm) : 136 with blade 400
- Max cutting height at 45���? (mm) : 97 with blade 400
- Blade tilt (degrees) : 45���?
- Blades lifting and tilt : manual
- Main blade rotating speed (rpm) : 3500/4000/5000
- Scoring unit rotating speed (rpm) : 9200
- Saw unit motor power kW (HP) 50Hz : 5 (6,6)
- Scoring unit motor power [S1] kW (HP) 50Hz : 0,55 (0,75)
- w. 3200 mm carriage : 3200x3200
- Cutting width on parallel fence (mm) : 1270
- at the base (mm) : 120
- on overhead protection (mm) : 80
Specifications
Sawing Specifications
- Squaring Capacity3200 mm
- Ripping capacity1270 mm
- Max. Cutting Height136 mm
- Main Saw Unit Power5 kW
