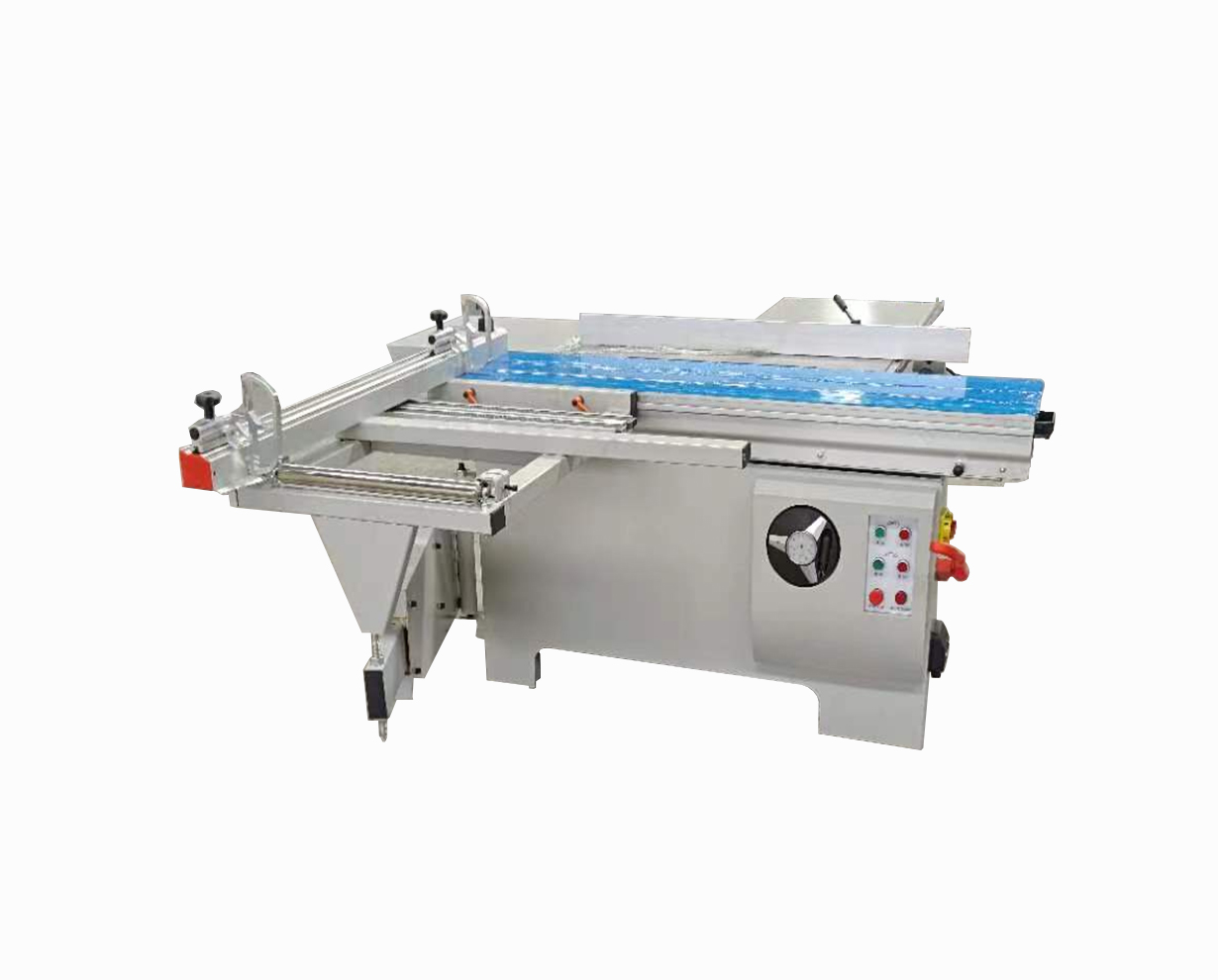

Sliding Panel Saw MJ6112S (4kw+0.75kw-90mm) with Scoring Saw
₹200,000.00 ₹250,000.00
Available on Request
Technical Specifications
- Sliding table size : 1200*375MM
- Max cutting length : 1200MM
- Distance between saw and parallel stop : 1250MM
- The best cutting thickness( saw diameter 300mm) : 75MM
- 45 the best cutting thickness : 65MM
- Grooving saw spindle speed : 7000-8000R/ MIN
- Main saw size : Outside diameter 300MM/inner diameter 30MM
- Grooving saw size : Outside diameter 120MM/inner diameter 20MM
- Main saw spindle speed : 4000-6000R/MIN
- Main saw diameter (possible range), mm : 250-300MM
- Motor power : 4+0.75KW
- Saw blade angel : 0 - 45゜
- Outside size : 1200*2450*900mm
