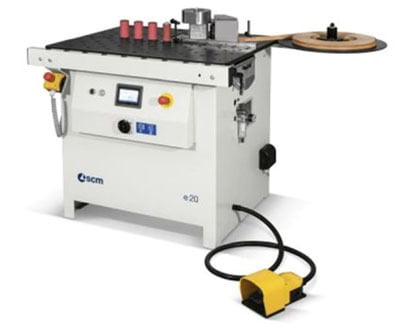

SCM Manual edge bander E 20 for straight and shaped panels with PUR Gluepot
CONFIGURATION
• 10.99.99 N. 1 : Security execution
• R0.08.57 N. 1 : e 20 CE version
• 93.07.31 N. 1 : Volt 400 EU
• 93.12.01 N. 1 : Frequency 50 Hz
• 62.15.70 N. 1 : Adjustable tilting table from 0 to 45°
• 62.15.71 N. 1 : Infeed fence for linear panels
• 62.15.72 N. 1 : 3-roller outfeed fence
• 62.13.87 N. 1 : Front extension for the support of large dimensions panels
• 62.15.79 N. 1 : Glue pot for poliurethane glue supplied in substitution of the standard one
• 08.32.05 N. 1 : Wood blocks
• 10.99.91 N. 1 : Machine language: ENGLISH
| Manual Edge Banding. Straight and Shaped. One Machine. |
| The e 20 is the manual edge bander designed to be economic, reliable and practical; a complete machine for the edge banding of straight and shaped panels. |
Min. ÷ max. edge thickness 0.4 ÷ 3 mm | Min. ÷ max. edge height 10 ÷ 84 mm | Min. ÷ max. panels height 8 ÷ 80 mm | Min. ÷ max. panels length/width 290/50 mm | Min. internal radius (concave), 0.4 mm thickness 25 mm |
| How It Works | |||||||||||
|
| Key Features | |
43" touch-screen electronic control: simple and intuitive, enables easy selection of all main functions. | |
Feed speed adjustment of the edge from 3 to 8 m/min via electronic control | |
Rapid glue heating system | |
Stand-by timed function to save energy | |
Performance just like a 'bigger' edge bander | |
Edge banding of both straight and shaped panels |
| Features, Advantages & Benefits | ||
| Feature | Advantage | Benefit to You |
| Safety | ||
| Anti-burn standby mode | Timed standby mode cools glue when machine is idle | You protect the glue pot and reduce fire risk during breaks |
| Guarded moving rollers | All feed rollers and edge guides have operator-protection covers | You work safely around a moving machine all day |
| Electronic speed control | Feed speed adjustable 3-8 m/min via touchscreen | You control the process precisely — no overloading or skipped edges |
| Quality | ||
| Hot-melt glue on rolls and strips | Works with edge tape in roll and solid strip format | You band with PVC, ABS, wood veneer, and solid strips on one machine |
| Straight and shaped panel capability | Single machine handles both straight edges and shaped/curved panels | You cover the full range of panel edge profiles without a second machine |
| Rapid glue heating system | Fast heat-up gets the machine ready in minutes, not hours | You start production sooner at the beginning of every shift |
| User Friendly | ||
| 4.3" touchscreen control | Simple, intuitive touchscreen selects all main functions | You train a new operator in minutes — no complex programming required |
| Adjustable feed speed | 6 feed speed settings from 3 to 8 m/min via electronic control | You match the feed rate to every edge material — from thin PVC to solid wood |
| Energy-saving standby | Timed standby mode reduces power consumption automatically | You save on electricity during breaks without manually switching off |
| Productivity | ||
| Straight + shaped in one machine | No need for a separate machine for shaped panels | You handle more work types with a single machine — lower capital cost |
| Fast job changeover | Simple controls and quick access to glue pot for edge changes | You switch between jobs quickly — less downtime between orders |
| Compact footprint | Designed for small to medium joinery workshops | You fit professional edge banding capability into a limited floor area |
| ROI | ||
| Authorised Distributor for SCM | caple.in is the official SCM distributor in India | You get genuine machines with full manufacturer support |
| Low entry cost, professional results | E 20 delivers professional edge quality at an accessible price point | You add consistent edge banding without the cost of a full production machine |
| Italian SCM reliability | Built to SCM quality standards with commercial-grade components | You get a machine that outlasts lower-cost alternatives many times over |
| TRUST | ||
| Authorised Distributor | Official authorised distributor in India | You get genuine machines, original parts, and manufacturer-backed support |
| caple.in | Since 1974 | 50+ years of woodworking machinery expertise across India | You get a trusted partner with deep industry knowledge |
| Warranty | 12 months or 2000 hours whichever is earlier | You get protected investment from day one |
| Trained Service Team | Factory-trained engineers with genuine spare parts stocked in India | You get fast turnaround on service calls |
| Pan-India Support | Multiple demo centres for installation and ongoing support | You save on downtime with rapid-response service desk |
| Technical Specifications | |
| Min. ÷ max. edge thickness | 0.4 ÷ 3 mm |
| Min. ÷ max. edge height | 10 ÷ 84 mm |
| Min. ÷ max. panels height | 8 ÷ 80 mm |
| Min. ÷ max. panels length/width | 290/50 mm |
| Min. internal radius (concave), 0.4 mm thickness | 25 mm |
| Min. external radius (convex), 0.4 mm thickness | 5 mm |
| Feed speeds | 3 - 4 - 5 - 6 - 7 - 8 m/min |
| Frequently Asked Questions |
What edge tape types does the E 20 support? The E 20 works with hot-melt glue and handles edge tape in both roll and strip format. Tape thickness range is 0.4 to 3mm, and tape height range is 10 to 84mm — covering PVC, ABS, wood veneer, and solid wood strips. |
Can the E 20 handle shaped panels (curves)? Yes. The E 20 is specifically designed for both straight and shaped panels. It handles concave radii from 25mm and convex radii from 5mm (at 0.4mm tape thickness), making it suitable for curved kitchen doors and shaped furniture fronts. |
What panel thickness range does the machine accept? The E 20 accepts panel thicknesses from 8mm to 80mm, covering standard MDF, chipboard, plywood, and solid wood panels used in furniture and joinery production. |
How fast does the E 20 apply edge tape? Feed speed is adjustable between 3 and 8 m/min in six steps, controlled via the 4.3-inch touchscreen. Thinner PVC tape runs at higher speeds; solid wood strip banding is typically run at lower feed rates. |
What is the PUR Gluepot variant? The E 20 with PUR Gluepot uses polyurethane reactive (PUR) hot-melt adhesive instead of standard EVA glue. PUR provides a stronger, more heat-resistant and moisture-resistant bond — recommended for kitchen, bathroom, and exterior applications. |
How long does the glue take to heat up? The E 20 has a rapid glue heating system that reaches operating temperature quickly at the start of each shift. The standby mode then maintains temperature between jobs without full reheat cycles, saving energy. |
Is training provided after installation? Yes. caple.in provides on-site installation, commissioning, and operator training. The E 20 is an intuitive machine — most operators are productive within an hour of commissioning. |
What warranty is included? All SCM machines supplied by caple.in include full manufacturer warranty. caple.in is the Authorised Distributor for SCM in India, backed by the SCM group's global service and parts network. |
