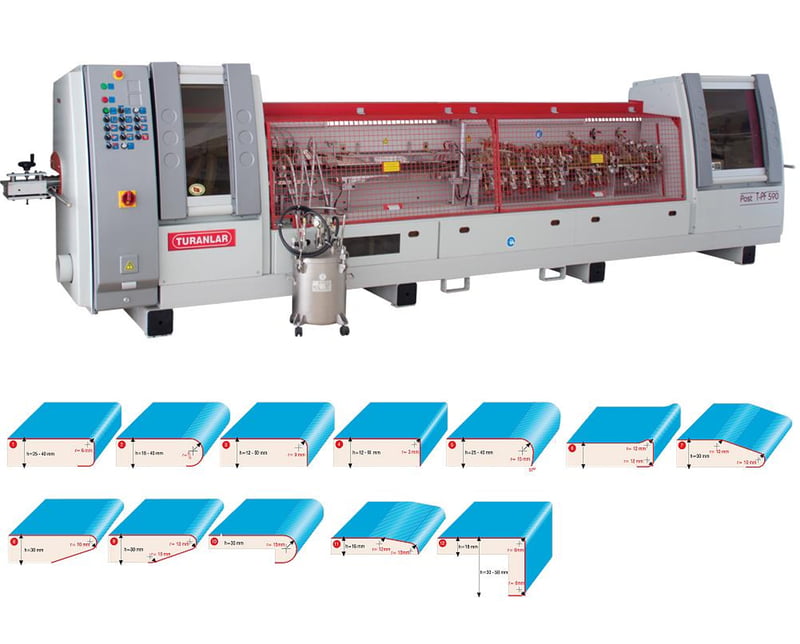

Turanlar Postforming Machine TPF590

• FEATURES

• Laminate and Primer milling unit

• PVA glue spraying system

• Heaters unit

• Short-wave infrared glass heaters

• Form pressure roller unit

• Steel cooled form wheels

TECHNICAL DATA

• Electrical Level : 400V/ 50Hz

• Speed : 0-18 m/min

• Nominal Current : 57A

• Laminate Thickness : 0.4 - 1mm

• Laminate Height : 70mm

• Total Electric Power : 27kW

• Working Height : 870mm

• Milling Motor : 0.37 kW / 12000rpm

• Grooving Motor : 0.55 kW

• Total Air Pressure : 6 bar

• Dryer Lamp : 2 kW

• Laminate Milling Power : 0.37 kW / 12000rpm

• Primer Milling Power : 1.5 kW / 12000 rpm

• Total Air Use : 52 lt/min

• Dust outfeed dia. : 150mm

• Machine Dimensions : 920w x 6500Lx 1600H

• Weight : 2640kg
