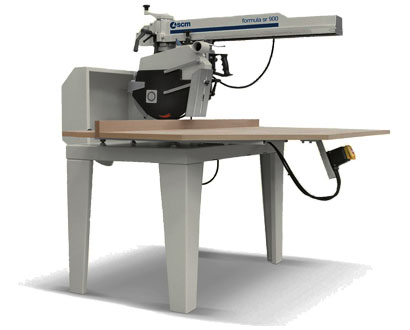

Scm Radial Arm Saw FORMULA SR900
STANDARD MACHINE
• 10.99.99 : Security execution
• RF.06.42 : formula sr 900
• 93.07.72 : Voltage 400 EU
• 93.12.05 : Frequency 50 hz
• 58.04.28 : Rollers table, 1 meter length, on the blade left side (each)
• 58.04.01 : Roller table, 1 meter length, on the blade right side (each)
• 58.04.29 : Aluminium fence on wooden table
• 10.99.91 : Machine language: ENGLISH
| Cast Iron Strength. Cross-Cut Precision to 900mm. |
| Radial saws of the formula line with heavy cast-iron structure, available with 650, 750 and 900 mm cross-cut capacity. Adaptability, versatility, cutting precision, easy maintenance. |
SR 650 - Blade diameter 350 ÷ 400 mm | SR 650 - Blade tilting -45° ÷ +45° | SR 650 - Max. cutting depth at 90°/45° blade (400mm blade option) 120/83 mm | SR 650 - Max. cross-cut capacity 640 x 20 mm | SR 650 - Three-phase motor power 3 kW (4 Hp) |
| How It Works | |||||||||
|
| Key Features | |
Maximum cutting precision: The cast iron structure provides the arm the maximum solidity and rigidity for the maximum cutting precision. The interchangeable sliding ways allows the operator a simple and rapid replacing, in case of wear, without direct intervention on the arm. | |
Precision and smoothness: The 8 sliding bearings on the guides grant the best carriage smoothness and an optimal support for a perfect cutting result. | |
Longlasting functionality: The mechanisms of which the machine is equipped, as the protection cover on the arm column support, protect the mechanical parts from dust, guaranteeing the best operation over time. |
| Features, Advantages & Benefits | ||
| Feature | Advantage | Benefit to You |
| Safety | ||
| Heavy cast iron structure | Cast iron arm provides maximum rigidity — no vibration, no deflection | You get precise, controlled cuts with no unexpected movement |
| Protection cover on arm column | Bellows and protective covers shield mechanical parts from dust | You get long-lasting functionality without debris ingress into the mechanism |
| Blade guard | Standard blade guard protects operator during every cut | You get a safe cutting environment that meets workshop CE requirements |
| Quality | ||
| 8 sliding bearings | Eight bearings on the guides provide optimal support across the full stroke | You get smooth, backlash-free carriage movement — accurate cut every time |
| Interchangeable sliding ways | Sliding ways can be replaced without touching the arm | You restore cut precision without machine downtime or specialist labour |
| Cast iron arm rigidity | Solid casting absorbs vibration that hollow or welded structures transmit | You get clean, square crosscuts even in dense hardwood |
| User Friendly | ||
| 900mm crosscut capacity | 900mm cross-cut handles wide beams and structural timber | You crosscut wide components without a second setup or repositioning |
| Simple blade tilt -45° to +45° | Full bilateral tilt range — compound angle cuts possible | You make mitres and compound cuts without separate equipment |
| Spring return mechanism | Automatic spring return brings carriage back to rest position | You save time between cuts — hands free on the return stroke |
| Productivity | ||
| High throughput crosscutting | Fixed position, fast cycle — position, clamp, cut, return | You process length cuts at high volume with consistent accuracy |
| Formula range reliability | Formula machines are fully SCM-guaranteed and service-backed in India | You run production without worrying about machine reliability |
| Multiple capacity options | Available in SR650, SR750, and SR900 configurations | You choose the capacity that matches your longest component requirement |
| ROI | ||
| Authorised Distributor for SCM | caple.in is the official SCM distributor in India | You get genuine machines with full manufacturer support |
| Low operating cost | Simple mechanism with few moving parts — low wear and consumable costs | You save on tooling and maintenance over the machine lifetime |
| Italian engineering | Formula machines built in Italy, SCM-guaranteed for quality and reliability | You invest in a machine with a known global reputation for longevity |
| TRUST | ||
| Authorised Distributor | Official authorised distributor in India | You get genuine machines, original parts, and manufacturer-backed support |
| caple.in | Since 1974 | 50+ years of woodworking machinery expertise across India | You get a trusted partner with deep industry knowledge |
| Warranty | 12 months or 2000 hours whichever is earlier | You get protected investment from day one |
| Trained Service Team | Factory-trained engineers with genuine spare parts stocked in India | You get fast turnaround on service calls |
| Pan-India Support | Multiple demo centres for installation and ongoing support | You save on downtime with rapid-response service desk |
| Technical Specifications | |
| SR 650 - Blade diameter | 350 ÷ 400 mm |
| SR 650 - Blade tilting | -45° ÷ +45° |
| SR 650 - Max. cutting depth at 90°/45° blade (400mm blade option) | 120/83 mm |
| SR 650 - Max. cross-cut capacity | 640 x 20 mm |
| SR 650 - Three-phase motor power | 3 kW (4 Hp) |
| SR 750 - Blade diameter | 350 ÷ 400 mm |
| SR 750 - Blade tilting | -45° ÷ +45° |
| SR 750 - Max. cutting depth at 90°/45° blade (400mm blade option) | 120/83 mm |
| SR 750 - Max. cross-cut capacity | 750 x 20 mm |
| SR 750 - Three-phase motor power | 3 kW (4 Hp) |
| SR 900 - Blade diameter | 400 mm |
| SR 900 - Blade tilting | -45° ÷ +45° |
| SR 900 - Max. cutting depth at 90°/45° blade | 120/83 mm |
| SR 900 - Max. cross-cut capacity | 900 x 20 mm |
| SR 900 - Three-phase motor power | 4 kW (5.5 Hp) |
| Frequently Asked Questions |
What is the maximum crosscut capacity of the Formula SR 900? The Formula SR 900 has a maximum cross-cut capacity of 900mm with a 400mm blade. This handles wide solid wood beams, structural timber, and oversized panels without repositioning. |
What blade tilt range does the Formula SR offer? The Formula SR series tilts from -45° to +45°, enabling compound angle cuts in both directions. This makes it suitable for mitre cuts, compound mitres, and angled crosscuts in a single setup. |
How does the interchangeable sliding ways system work? The sliding ways can be replaced without touching the arm column. This means when the ways wear after years of use, you can restore original precision by replacing only the wear components — no specialist labour or machine realignment needed. |
Is the machine heavy-duty enough for production use? Yes. The Formula SR 900 has a full cast iron structure on the arm — not welded steel. Cast iron absorbs vibration and provides the rigidity needed for precise, repeatable cuts across high-volume crosscutting production. |
What motor power does the Formula SR 900 have? The SR 900 is fitted with a 4kW (5.5 Hp) three-phase motor, using a 400mm blade. The SR 650 and SR 750 use 3kW motors with 350-400mm blades depending on configuration. |
What is the Formula range guarantee? All Formula machines are fully guaranteed by SCM, reflecting the quality and reliability standards of the SCM group. caple.in is the Authorised Distributor for SCM in India, providing local service and parts support. |
How long does installation take? The Formula SR is straightforward to install — typically half a day. caple.in provides on-site delivery, positioning, electrical connection, and commissioning as standard with every machine sale. |
What warranty is included? All SCM machines supplied by caple.in include full manufacturer warranty. caple.in is the Authorised Distributor for SCM in India, backed by the SCM group's global service and parts network. |
