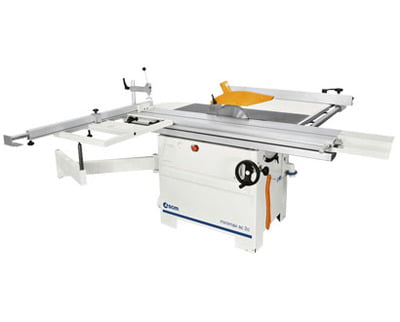

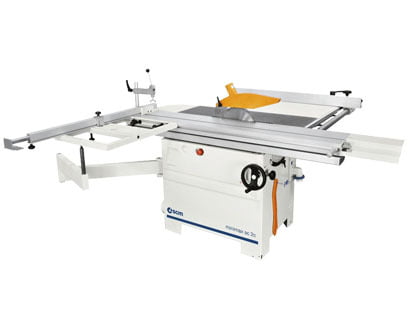

Scm Circular Saw / Panel Saw SC2C With Tilting Blade
₹400,000.00 ₹500,000.00
SCM small panel saw with 1600mm Sliding Table and 900mm Ripping capacity can accommodate in the smaller factory space. This Panel saw can cut Plywood, Solidwood, Particle Board, MDF, HDF and other non ferrous materials with the help of respective Saw Blade.
- unit with 315 mm maximum blade diameter capacity, also with the optional scoring blade is requested (blade not included)
- Extruded anodized aluminium sliding table (dimensions 270 x 124 x 1600 mm) sliding on high precision hardened steel guideways
- Squaring frame complete with: *telescopic fence with 1 retractable stop *eccentric clamp *support
- Dedicated saw parallel fence complete with: *"high rigidity" cast iron fence support *micrometric adjustment and cam-locking system *rectified steel round sliding bar, 45 mm diameter
- Belt driven scoring unit complete with blade
TECHNICAL FEATURES:
- cast iron worktable dimensions [mm] : 1020 x 325
- blades tilting : 90��� - 45��� - max. saw blade diam. with scoring blade installed [mm] : 315
- max. saw blade projection from table at 90���/45��� [mm] : 100/78
- max. squaring stroke (standard) [mm] : 1600
- cutting width on parallel fence (standard) [mm] : 900
- three-phase motor S6 : 4kW (5,5hp) 50Hz
- exhaust outlet diameter [mm] : 120
Choose Quantity
Specifications
Sawing Specifications
- Squaring Capacity1600 mm
- Ripping capacity900 mm
- Max. Cutting Height100 mm
- Main Saw Unit Power4 kW
- Main Saw Rpm7700
