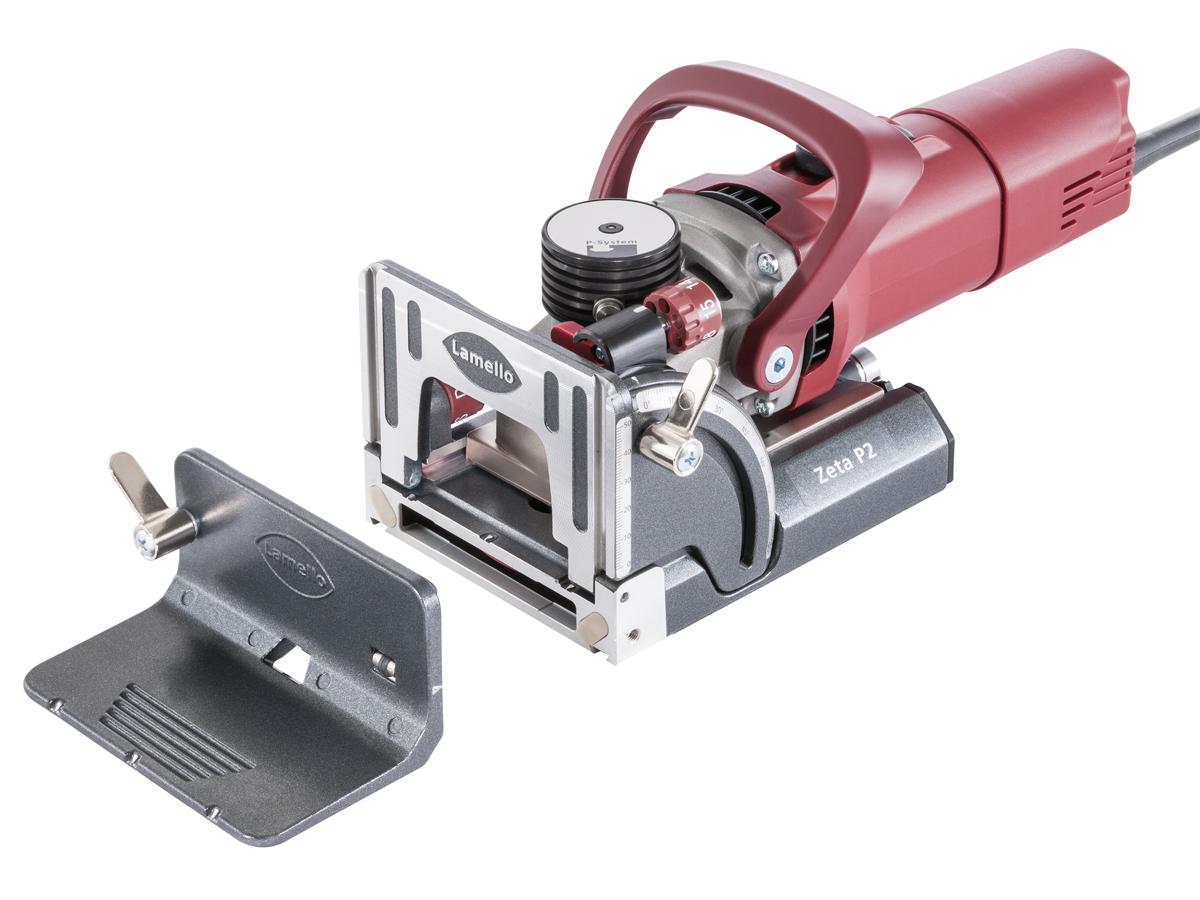

Name: Lamello Zeta P2 biscuit joiner, DP, plug type F Schuko, in systainer3 M
Brand: Lamello
SKU: 101403CNSD
Price: 200000.0 INR
Availability: InStock

Power Tools & Hand Tools Portable Jointing Machines Lamello Zeta P2 biscuit joiner, DP, plug type F Schuko, in systainer3 M

Lamello Zeta P2 biscuit joiner, DP, plug type F Schuko, in systainer3 M

Technical Specifications — Lamello Zeta P2
Product weight	4 kg
Maximum machining depth	20 mm
Engine power	1050 W
Rotational speed	9000 min-1
Milling cutter attachment	Screwed
Cutter hub diameter	22 mm
Secondary holes diameter	M4 mm
Secondary holes pitch circle diameter	36 mm
Sound pressure level	81 dB
Sound power level	92 dB
Protection class	II
Hand arm oscillation	2.5 m/s2
Cable length	4 m
Milling cutter	Profile groove cutter Ø 100 x 7 x 22 mm, Z3
Cutting depth max	20 mm

Biscuit joiner for the production of the form-locking P-System groove
Extremely fast, time-saving joining method - Cut. Connect. Done.
Wide range of connectors for different applications
Same application advantages as the well-known Lamello system with wooden biscuits
Precise furniture connections in all angle and connection situations

₹200,000.00

₹250,000.00

Customize

Choose Quantity :

View Details

TEST

Lamello Zeta P2 — Inspiration & Application

FEATURE — ADVANTAGE — BENEFIT
Feature / Fact	Advantage (So what?)	Benefit (You get / You save)
QUALITY
Integrated vertical mechanical drive (VMD) that...	Integrated vertical mechanical drive (VMD) that automatically triggers at maximum cutting depth to create the form-locking P-System groove.	Delivers Swiss-engineered Lamello performance on every cut.
Precise P-System depth adjuster enables lightning-fast...	Precise P-System depth adjuster enables lightning-fast rotation for setting depths for P-System elements: 10, 12, 14, 15 or 18 mm.	Delivers Swiss-engineered Lamello performance on every cut.
Can be used as a standard...	Can be used as a standard biscuit joiner for wooden biscuits (sizes 0, 10, 20) by deactivating the P-System groove function.	Delivers Swiss-engineered Lamello performance on every cut.
Compatible with CNC machining centres via...	Compatible with CNC machining centres via positioning pins for exact groove milling on surfaces and edges.	Delivers Swiss-engineered Lamello performance on every cut.
Reliable, fully mechanical and low-wear vertical...	Reliable, fully mechanical and low-wear vertical mechanical drive using high-precision turned parts.	Delivers Swiss-engineered Lamello performance on every cut.
High processing quality — no depth...	High processing quality.	no depth adjustments between the processing of the two workpieces.
Lateral play of joining elements drives...	Lateral play of joining elements drives the vertical movement automatically.	Delivers Swiss-engineered Lamello performance on every cut.
Works with the full range of...	Works with the full range of P-System connectors: Clamex P, Tenso P, Divario P, Bisco P.	Delivers Swiss-engineered Lamello performance on every cut.
PRODUCTIVITY
Enables quick adjustment for angle joints...	Enables quick adjustment for angle joints with P-System connectors.	Delivers Swiss-engineered Lamello performance on every cut.
RELIABILITY
3-year warranty when registered within 30...	3-year warranty when registered within 30 days of purchase from authorised retailer.	Delivers Swiss-engineered Lamello performance on every cut.
