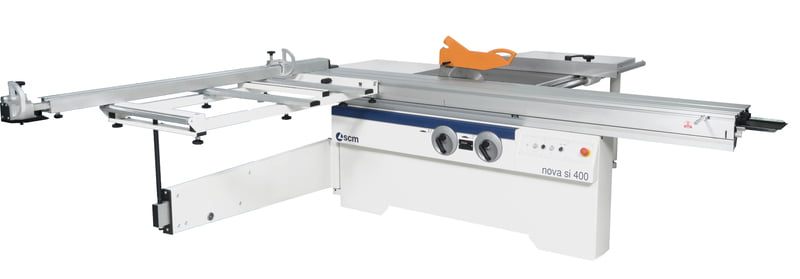

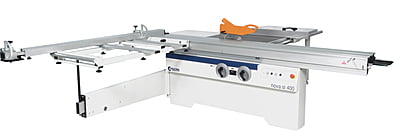

SCM Circular Saw / Panel Saw NOVA-SI400-IT(DRO)
₹1,125,000.00 ₹1,406,250.00
FEATURES
- Optimizer/Sequencer App for Tablet: SCM Thundercut:
Application to be downloaded from the App Store or Play Store on
compatible tablets (mobile devices) equipped with iPadOS or Android
operating systems.
It can be activated using the QR code supplied with the machine.
La App permette di:

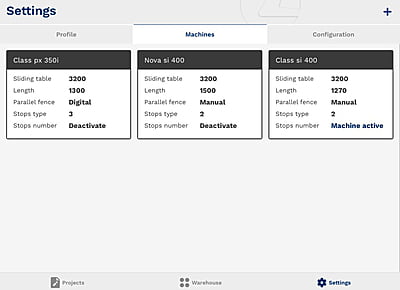

* manage your machine stock and the material and panel magazine

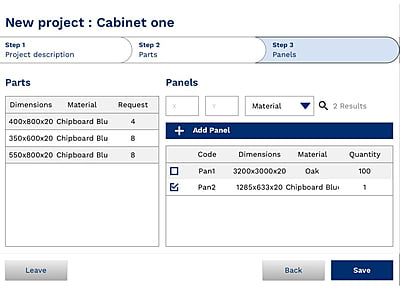

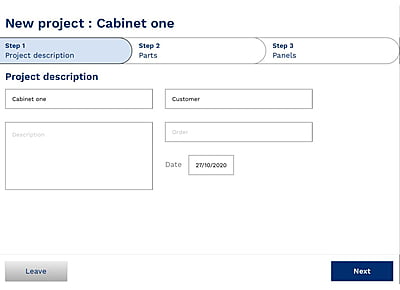

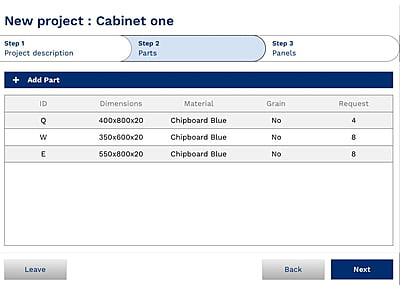

* create and modify projects, import projects from the main furniture
design software ("cpout" file format), import cutting lists

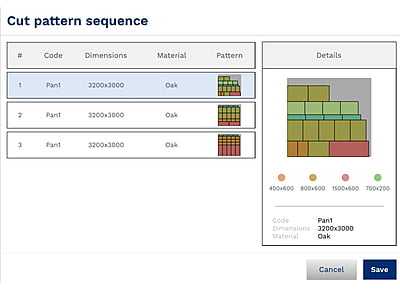

* optimize cutting lists, choosing from one or more proposals of the
optimization software integrated into the App.

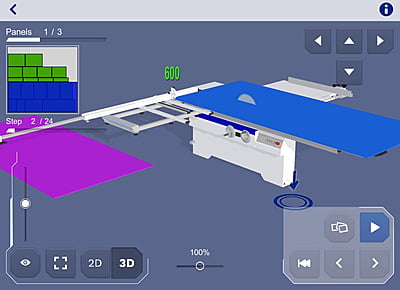

* set the machine correctly for each cut to be made, thanks to the simple
and intuitive graphics of the 3D sequencer that guides the operator at
each step.
* print labels with bar code to identify the various parts, thanks to the
Bluetooth connection with compatible label printers.
- Anodized aluminium alloy carriage on hardened steel guides, which are fixed on the carriage through a mechanical
bending system
- Sliding carriage length 3200mm
- Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt
- Outfeed table extensions
- Sliding on steel bar, 40 mm diameter with micrometric adjustment
- Ripping capacity on parallel fence 1270 mm.
- Squaring fence with no. 2 LCD readouts for stops position
- Third squaring stop with LCD display for the position readout
- Digital readout for parallel fence positions
- Eccentric clamp
Safety/Protections:
- Emergency pushbutton located on the front machine side
- Overload protection
- Blade protection on the riving knife (versions with electrical protections) exhaust outlet 60mm. and 120mm
- Padlockable main switch
- Auxiliary low voltage circuit (110 voltage)
Technical Data:
- Squaring capacity [mm] : 3200x3200
- Cutting width on rip fence [mm] : 1430mm
- Max cutting height at 90° [mm] : 140 with 400dia blade
- Max cutting height at 45° [mm] : 97 with 400dia blade
- Blades lifting & tilt : Manual
- Main blade rotating speed [rpm] : 3700
- Scoring blade rotating speed [rpm] : 8500
- Saw unit motor power (S6 -40%) kW (HP) 50 Hz : 7 KW , 9.5 ( HP)
Choose Quantity
Specifications
Sawing Specifications
- Squaring Capacity3200 mm
- Ripping capacity1430 mm
- Max. Cutting Height140 mm
- Main Saw Unit Power7 kW
- Main Saw Rpm3700
