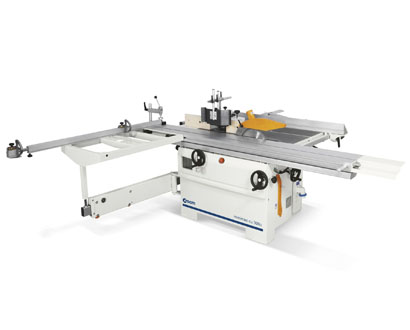

SCM Combination Machine Minimax Cu 300 C (R005602)

FEATURES

• Pre-setting for mortiser

• New design of the dust-conveyor, to protect the cutter block, for further system safety increase

• Version with maximum squaring stroke 2600 mm

• Belt driven scoring unit complete with blade - 2 extra handwheels for the operating unit's movement

• Professional fences

• Xylent spiral knife cutter block with 3 series of knives

• Xylent maintenance kit

• Cast iron mortiser - 0-16 mm self-centering (Wescott type) chuck

• Bridge planer protection (standard for CE version)

• Anodized aluminium tables for spindle moulder fence

• Spindle moulder shaft of 30 mm diam.

• Locking by countersunk socket screw TECHNICAL

FEATURES

• PLANER

• useful working width [mm] : 300

• cutter block diameter (mm)/n. standard knives  : 72/3

• standard knives dimensions [mm] : 300 x 30 x 3

• max. stock removal [mm] : 4

• surfacing tables total length [mm] : 1510

• thicknessing table dimensions [mm] : 585 x 300

• feed speed on thicknesser [m/min] : 7

• min. ? max. working height on thicknesser [mm] : 3 ? 230 CIRCULAr SAW

• cast iron saw-spindle moulder worktable dimensions [mm] : 1115 x 335

• blades tilting  : 90? ? 45?

• max. saw blade diam. with scoring blade installed [mm] : 315

• max. saw blade projection from table at 90?/45? [mm] : 100/78

• max. squaring stroke (standard) [mm] : 1600

• cutting width on parallel fence [mm] : 820 SPINDLE MOULDER

• max. useful spindle length [mm] : 100*

• spindle moulder speeds (at 50 Hz) [rpm] : 3500/7000/10.000

• max. tool diameter when profiling [mm] : 210

• max. diam. of tool lowered under the table at 90? [mm] : 180 OTHER TECHNICAL FEATURES

• three-phase motors S6  :  5kW (6,6hp) 50Hz - 6kW (8hp) 60Hz

• exhaust outlets diameter [mm] : 120

• Spindle moulder available with following diameters:  : 30  32 - 35 - 40 - 50 mm 3/4" - 1" - 1 1/4" Frequently Asked QuestionsWhat SCM machines does Caple supply?Caple is an authorised SCM dealer supplying edge banders, wide belt sanders, panel saws, CNC nesting machines, and beam saws from SCM Group — one of Italy's leading woodworking machinery manufacturers.How does an SCM edge bander compare to entry-level edge banders?SCM edge banders feature precision German-engineered glue units, servo-controlled feed systems, and digital parameter adjustment — delivering superior edge quality, faster changeover, and longer service life versus entry-level machines.What is the lead time for SCM machines in India?Lead times for SCM machines vary by model and configuration. Contact Caple at caple.in/contact for current availability and delivery timelines.Does SCM equipment work with Indian wood species?Yes — SCM machines are engineered for hardwoods, softwoods, MDF, plywood, and particle board, including Indian species like teak, sheesham, and mango wood commonly used in Indian furniture manufacturing.What after-sales support does Caple provide for SCM?Caple provides installation, operator training, scheduled maintenance, and spare parts supply for SCM machines. Contact us at caple.in/contact.
