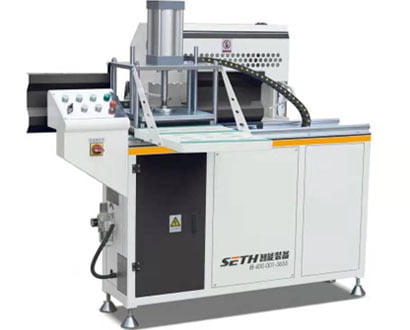

Medium sized End milling machine for aluminum profile LJDX-200C

- Power supply : 380V/50Hz

- Total motor power  : 4.4kW​

- Motor speed : 2800r/min

- Operating pressure : 0.6 - 0.8MPa

- Motor shaft diameter : 32mm

- Milling cutter diameter : 250mm

- Worktable feed stroke : 0 - 1360mm

- Open tenon : 40mm

- Worktable dimension : 330×320mm

- Motor adjustment stroke : 0 - 85mm

- Overall dimension : 2240×1020×1670mm

- Weight : 450kg

-  It is suitable for milling the end face of aluminum profile, so as to meet the matching between center stile and frame

   material. It can mill multiple profiles at one time with high efficiency.

-  Three-axis two motors can simultaneously carry 4- 6 cutters.

-  Cutting tools can be adjusted up and down and left and right to adapt to machining with different shapes and sizes.

-  The cutting tool is adjustable, and it is unnecessary to customize the cutting tool when processing different profiles,

    thus shortening the production preparation, cycle and reducing the cost.

-  The motor phase sequence protector is installed in the circuit system, which improves the safety of the system.

-  Gas-liquid damping device is adopted in the working progress system, which is stable and reliable.
