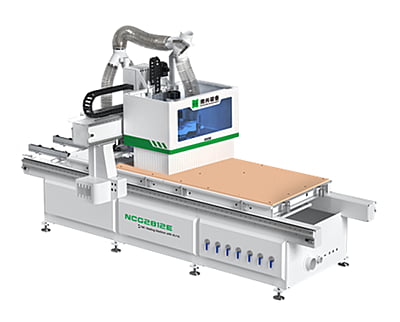

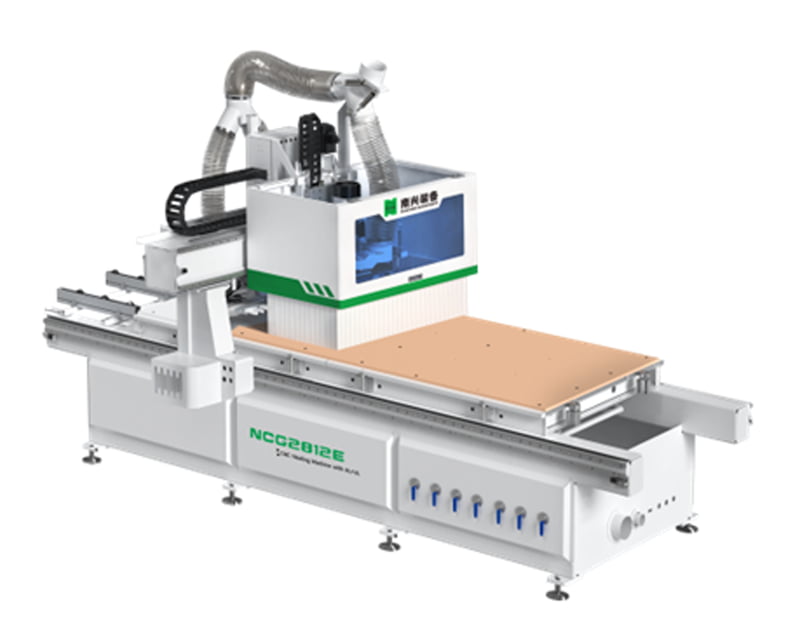

Nanxing CNC Nesting Machine NCG2812E 12KW

Name: Nanxing CNC Nesting Machine NCG2812E 12KW
Brand: Nanxing
SKU: NCG2812E
Price: 1850000.0 INR
Availability: OutOfStock

₹1,850,000.00 ₹2,312,500.00

Warranty

12 Months

Country of origin

China

YouTube Video 1

https://youtu.be/5I4rExuVNQQ?si=2ewk8EZd43zru_C5

Specifications

Pre-installation Checklist

GST Extra

18%

Available on Request

FEATURES

• 1pc Vacuum Pump

• Automatic Greasing

• Side Positioning Cylinders & Positioning Cups

• 12kW main Spindle

• Automatic Line Tool Changer 12 Slots

• Start/Stop Button on gantry

• Tank Cable Chain

• Tool Setting gauge and locker

• Hand Controller

• Computer with Windows Dell Display USB Port & easy for remote assistance

• SYNTEC Control System

• Vacuum infeed cup and roller bracket

• Control system : SYNTEC

• Working range X : X-axis: 2,800 mm

• Working range Y : Z-axis: 50 mm

• Working range Z : Y-axis: 1,220 mm

• Working table : Size: 2800x1,220 mm Height: 950mm

• Max. traveling speed X : X-axis: 100 m/min

• Max. traveling speed Y : Z-axis: 20 m/min

• Max. traveling speed Z : Y-axis: 100 m/min

• Main spindle Quantity : 1

• Main spindle Power : 12 kW

• Main spindle Tool Holder : ISO30

• Main spindle Tool Speed : 24000 rpm

• ATC : Servo control Line tool changer with 12 slots

• Vacuum pump Quantity : 1

• Vacuum pump Power : 7.5 kW

• Vacuum pump Suction flow rate : 250 m3/h

• Dust extraction Diameter : 150 mm*1x125mm*1 Speed required: 28 m/s

• Air supply : 6-7 kg/cm2

• Power supply : 415V, 3-phase, 50 Hz

• Total power : 24 kW

• Floor space : LxWxH: 4220x2270x2500 mm

• Net weight : 2500 kg

TEST

CNC Router

Nanxing CNC Nesting Machine NCG2812E 12KW

Precision routing and nesting. Built for serious production.

QUICK SPECS

4220 x 2270 mm

Work Area

100

Feed Speed

24 kW - Floor space : LxWxH: 4220x2270x2500 mm - Net weight : 2500 kg

Total Power

12 kW

Power

24000

Speed

2500 kg

Weight

HOW IT WORKS

Load Panel

Set Zero

CNC Route

Drill Holes

Unload Part

KEY FEATURES

— 1pc Vacuum Pump

— Automatic Greasing

— Side Positioning Cylinders & Positioning Cups

— 12kW main Spindle

— Automatic Line Tool Changer 12 Slots

— Start/Stop Button on gantry

— Tank Cable Chain

— Tool Setting gauge and locker

— Hand Controller

— Computer with Windows Dell Display USB Port & easy for remote assistance

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
CE-certified safety design	Meets international safety standards	You get a machine built for operator safety
Emergency stop circuit	Instant power cut-off on activation	You get immediate halt in emergencies
Enclosed moving parts	Reduces contact with rotating components	You get a safer working environment
QUALITY
Precision-engineered components	Tight tolerances on all machined parts	You get accurate, consistent output every shift
Rigid steel frame construction	Eliminates vibration during operation	You get cleaner cuts and better surface finish
Quality control sensors	Auto-detects deviation in real time	You get fewer rejects and less rework
USER FRIENDLY
Touch-screen HMI panel	Intuitive program entry and adjustment	You get fast job setup without specialist training
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
Tool-free adjustment	No spanners needed for size changes	You get faster changeovers and less idle time
PRODUCTIVITY
High feed speed (100)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Control system	SYNTEC
Working range X	X-axis: 2,800 mm
Working range Y	Z-axis: 50 mm
Working range Z	Y-axis: 1,220 mm
Working table	Size: 2800x1,220 mm Height: 950mm
Max. traveling speed X	X-axis: 100 m/min
Max. traveling speed Y	Z-axis: 20 m/min
Max. traveling speed Z	Y-axis: 100 m/min
Main spindle Quantity	1
Main spindle Power	12 kW
Main spindle Tool Holder	ISO30
Main spindle Tool Speed	24000 rpm
ATC	Servo control Line tool changer with 12 slots
Vacuum pump Quantity	1
Vacuum pump Power	7.5 kW
Vacuum pump Suction flow rate	250 m3/h
Dust extraction Diameter	150 mm1x125mm1 Speed required: 28 m/s
Air supply	6-7 kg/cm2
Power supply	415V, 3-phase, 50 Hz
Total power	24 kW

FREQUENTLY ASKED QUESTIONS

What file formats does the CNC accept?

The machine typically accepts standard G-code and industry formats compatible with popular CAD/CAM software. Confirm compatibility during the demo.

Can this machine handle nested-based production?

Yes, CNC routers from Nanxing are designed for full nesting workflow — cutting, routing, and drilling in a single program cycle.

What spindle speed range does this machine support?

Spindle speed varies by model. Refer to the technical specification section above for the rated RPM.

How many operators are needed to run the machine?

Typically 1 operator for loading and unloading; the machine cycles automatically from there.

What is the machine's warranty?

12 months or 2000 operating hours, whichever is earlier.

Where can I find the full manual and spare parts list for the NCG2812E?

Full documentation for the NCG2812E is available through caple.in. Contact our team or book a demo to receive the technical manual and parts catalogue.

What air pressure/CFM does the NCG2812E require?

The NCG2812E requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the NCG2812E?

The NCG2812E draws approximately 32 HP (24 kW) total power. Use a 40-amp 3-phase 415V supply with separate earthing and a 30 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the NCG2812E?

The Nanxing CNC Nesting Machine NCG2812E 12KW needs approximately 1,060 CFM (1,800 CMH) dust extraction through Ø150mm × 1. Because nestings generate high fine-dust load, we recommend a Reverse Pulse Jet dust collector — specifically the Dust Collector AXC Reverse Pulse Jet 5HP — 5,000 CMH. RPJ design auto-cleans filter cartridges preventing clog and maintaining airflow.

What are the overall dimensions of the NCG2812E?

The CNC Nesting Machine NCG2812E 12KW measures 4,220 × 2,270 × 2,500 mm (L × W × H) — equivalent to 13'10" × 7'5" × 8'2". Machine footprint is 9.6 m² (103 sq ft). Plan at least 410 sq ft including 1.5 m operator access zones on all sides.

What is the weight of the NCG2812E?

The NCG2812E weighs 2500 kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
