Who is the authorised Nanxing dealer in India?

Caple Industrial Solutions is the authorised Nanxing dealer in India with 7 demo centres across Mumbai, Delhi, Bengaluru, Kolkata and Ahmedabad. Call +91 70454 59931.

What machines do I need for a modular kitchen factory?

A modular kitchen factory needs a panel saw, edge bander, multi boring machine, CNC router and dust collector. Caple offers turnkey packages for 25 to 100 boards per day.

What is the price of a CNC router in India?

CNC router prices in India range from 15 lakh to 1.5 crore depending on axes, table size and automation. Caple offers Nanxing and SCM CNC routers with demo and pan-India service.

Which is better for edge banding PUR or EVA glue?

PUR gives invisible joints resistant to heat and moisture, ideal for kitchens. EVA is cost effective for standard furniture. Caple supplies both PUR and EVA edge banders from Nanxing.

Does Caple supply woodworking machines to Middle East and Africa?

Yes. Caple exports to UAE, Saudi Arabia, Qatar, Oman, Kenya, Nigeria, South Africa, Bangladesh, Sri Lanka and Nepal. Contact web@caple.in for export enquiries.

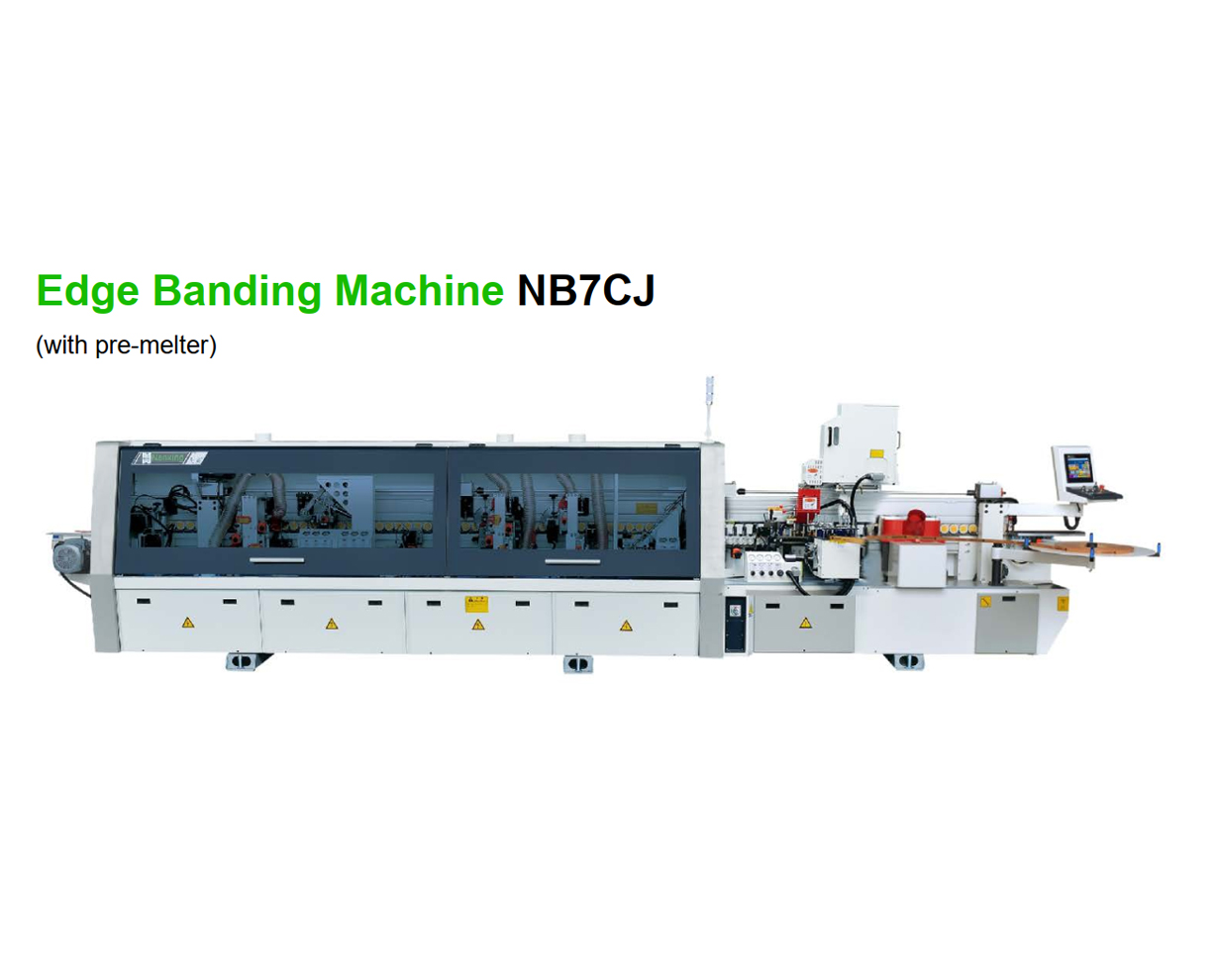

Nanxing Edge Banding Machine with Premelt+Cleaning Units NB7CJ(1Pre-Melt) (415V)

Nanxing NB7CJ — built by Nanxing Mac (China), one of Asia's top-3 woodworking machinery makers, with 30+ years of OEM supply to global furniture brands. Authorised distributor: Caple Industrial Solutions, India.

Best for: Panel furniture production and modular cabinet making.

Feature	Advantage	Benefit
Heavy duty machine body processed by advanced CNC machines ensures high stability and durability.	Vibration-free running at maximum feed speed	Cleaner cuts, longer tool life, lower rejection rate on premium boards
Numerous functions like pre-milling and corner trimming are merged into one efficient process.	Fresh, clean substrate before glue application	Edge tape sticks for the life of the cabinet, no peel-back claims
Automatic standby and one-button wake-up devices provide significant energy saving capabilities.	Fast set-up by a semi-skilled operator	Reduces dependence on a single senior machinist, scales the team faster
Most electrical components are from world famous brands ensuring reliable and stable operation.	Spare parts available globally, never a long downtime	Service uptime above 95 percent, peace of mind for OEM contracts
The machine supports high-speed feeding at rates of 16, 20, or 24 meters per minute.	Throughput per shift unmatched in this price band	Pays back the capex in months not years on volume contracts

Why buy Nanxing from Caple: Authorised India distributor since 2018. Factory-trained engineers across Mumbai, Delhi, Bengaluru, Kolkata. Genuine spares, on-call service, GST invoice. Demo at our Centre of Excellence, Pelhar (Mumbai). Project finance and EMI options available.

₹2,500,000.00 ₹3,125,000.00

Customize

Warranty

12 Months

Country of origin

China

YouTube Video 1

YouTube Video 2

GST Extra

Edge Bander

Nanxing Edge Banding Machine with Premelt+Cleaning Units NB7CJ(1Pre-Melt) (415V)

Professional edge banding. Precise bonds. Zero compromise.

QUICK SPECS

120x80mm - Panel thickness : 10-60 mm - Edge tape thickness : 0.4 - 3 mm - Feeding speed : 16/20/24 m/min - Power supply : 415 V

Panel Size

Feed Speed

24 Kw - input voltage : 30V 50Hz (standard) - Approx. weight : 3670 kg - Overall dimension : 7700*1450*1650 mm

Total Power

24 Kw

Power

3670 kg

Weight

30V 50Hz (standard) - Approx. weight : 3670 kg - Overall dimension : 7700*1450*1650 mm

Power Supply

HOW IT WORKS

Feed Panel

Apply Glue

Bond Edge

Trim Ends

Buff Finish

KEY FEATURES

— Spraying device (release+ cleaning agent)

— Pre-melter gluing system

— Snipping End Cutting

— Pressure Rollers

— Lubrication System

— Fine Trimming R1.5 Cutter with pneumatic auto tools adjustment

— Cornor Trimming R1.5 Cuttter

— Scraping unit with 2 position pneumatic auto adjustment.Buffing

— Safety device Feeding Protector Safety Device

— Safety device Interval feeding detection system

FEATURE	ADVANTAGE	BENEFIT TO YOU
SAFETY
Emergency stop button	Immediate machine halt	You get peace of mind with instant shutdown
QUALITY
Precision-engineered components	Tight tolerances on all machined parts	You get accurate, consistent output every shift
Rigid steel frame construction	Eliminates vibration during operation	You get cleaner cuts and better surface finish
Quality control sensors	Auto-detects deviation in real time	You get fewer rejects and less rework
USER FRIENDLY
Automatic feeding system	Hands-free panel transport	You get a single operator running the full cycle
PRODUCTIVITY
High feed speed (24)	More panels processed per hour	You get higher daily output from the same shift
Reliable cycle-time consistency	Same output rate shift after shift	You get predictable delivery schedules for customers
ROI
Reduced labour dependency	One operator can run the machine alone	You save on staffing costs and wage bills
Lower material waste	Precision cuts reduce offcut losses	You save on raw material spend every month
Durable long-life components	Extended service intervals	You save on spare parts and maintenance costs
TRUST
Authorised Nanxing Distributor	Direct factory support and genuine parts	You get the real machine with full manufacturer backing
caple.in — In business since 1974	50+ years of woodworking machinery expertise	You get advice from engineers who know the trade
12-month / 2000-hour warranty	Whichever comes first — no ambiguity	You get protected investment from day one
Trained service team	Factory-trained engineers for installation and support	You get fast, knowledgeable on-site support
Pan-India support network	Service coverage across India with multiple demo centres	You get local support wherever your factory is

TECHNICAL SPECIFICATIONS
Panel length	120mm
Panel width	80 mm
Mini. Panel size	120x80mm
Panel thickness	10-60 mm
Edge tape thickness	0.4 - 3 mm
Feeding speed	16/20/24 m/min
Power supply	415 V; 50 Hz
Air pressure required	0.7MPa
Operation system	10’’ touch screen
Dust collector Dia.xN	125mmx4
Total power	24 Kw
input voltage	30V 50Hz (standard)
Approx. weight	3670 kg
Overall dimension	770014501650 mm

FREQUENTLY ASKED QUESTIONS

What edge tape materials can this machine process?

The machine is compatible with PVC, ABS, melamine, veneer, and acrylic edge tapes in varying thicknesses. Refer to the technical specification sheet for the exact thickness range.

What board thickness range does this edge bander support?

The machine handles standard panel thicknesses used in furniture production. Check the spec table above for the exact min/max board thickness.

Do I need a skilled operator to run this machine?

No. The intuitive controls allow a trained semi-skilled operator to run production after a short commissioning session from our team.

What type of glue does the machine use?

The machine uses EVA hotmelt glue (standard). Some models also support PUR glue systems for demanding applications.

How long does installation and training take?

Installation, commissioning and operator training take approximately 1–3 days for standard machines and 3–5 days for large CNC or multi-axis machines, depending on site readiness and operator availability.

What air pressure/CFM does the Nanxing Edge Banding Machine with Premelt+Cleaning Units NB7CJ(1Pre-Melt) (415V) require?

The NB7CJ requires an air supply at 6 bar with approximately 15 CFM continuous consumption. Ensure your compressor and drier can deliver this reliably.

What is the total power consumption of the Nanxing Edge Banding Machine with Premelt+Cleaning Units NB7CJ(1Pre-Melt) (415V)?

The NB7CJ draws approximately 32 HP (24 kW) total power. Use a 40-amp 3-phase 415V supply with separate earthing and a 30 KVA stabiliser for safe operation.

What dust extraction capacity is needed for the Nanxing Edge Banding Machine with Premelt+Cleaning Units NB7CJ(1Pre-Melt) (415V)?

The NB7CJ needs approximately 2,496 CFM (4,241 CMH) dust extraction through Ø125mm × 4. We recommend the Dust Collector AXC | 10HP | 6625 CMH | Duct | NB7CJ.

What are the overall dimensions of the Nanxing Edge Banding Machine with Premelt+Cleaning Units NB7CJ(1Pre-Melt) (415V)?

The Edge Banding Machine with Premelt+Cleaning Units NB7CJ(1Pre-Melt) (415V) measures 7,700 × 1,450 × 1,650 mm (L × W × H) — equivalent to 25'3" × 4'9" × 5'5". Machine footprint is 11.2 m² (120 sq ft). Plan at least 513 sq ft including 1.5 m operator access zones on all sides.

What is the weight of the Nanxing Edge Banding Machine with Premelt+Cleaning Units NB7CJ(1Pre-Melt) (415V)?

The Nanxing Edge Banding Machine with Premelt+Cleaning Units NB7CJ(1Pre-Melt) (415V) weighs 3670 kg. Ensure floor load capacity and proper foundation before installation.

What is under the customer’s scope?

Travel, food and stay for service engineers; material handling and lifting equipment; power tools and consumables for machine foundation; operator safety equipment; basic electrical connections up to the machine; general tool kit and measuring instruments — are all under the customer’s scope.
