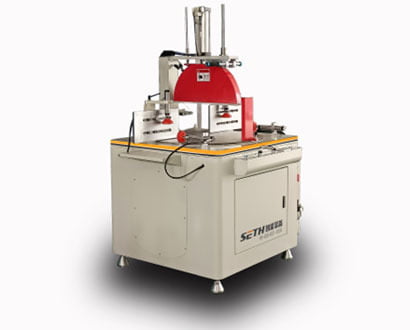

Single head arbitrary angle cutting machine SETH-LJZ1*50
₹500,000.00 ₹625,000.00
Available on Request
FEATURES: - Suitable for any angle cutting of various types of aluminum profiles. - It is suitable for cutting 0-330mm section, and has a wide range of applications. - Carbide saw blade with high machining precision and high durability. - It can be used with digital display/NC fixed-length table, with high processing efficiency. - Multiple profiles can be cut at 90° at the same time. TECHNICAL SPECIFICATIONS: - Power supply : 380v 50HZ - Working pressure : 0.5-0.8MPA - Air consumption : 30l/min - Motor Power : 3KW Spindle motor - Motor speed : 2840r/min - Sawing width : 45˚ max180mm 90˚max180mm - Sawing height : Max160mm - Saw blade size : 500mm*30*144z - Dimensions : 1400*1200*1950mm - Weight : 850kg - Working desk : One-piece casting - Cutting motor : 3.3KW spindle motor - Electrical device : Schneider Electric - Pneumatic Components : Dongsheng - Saw blade : Wagen
