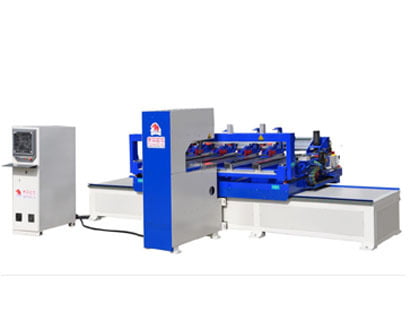

CNC Milling Saw CS1224

₹2,550,000.00 ₹3,187,500.00
Warranty
12 Months
Country of origin
China
GST Extra
18%
Available on Request
TECHNICAL DATA:
- X,Y,Z structure : X, Y,Z with 30 HIWIN Linear guide rail
- Spindle : Two 7.5kw air cooling spindle. 0-18000rpm/min
- Collect : ER32 - Operating system : Original NC studio control software
- Motor and Driver : Taiwan Delta/Yako servo motor and driver
- Reducer : Japanese shimpo reducer
- Working voltage : AC380V 3phase
- Inverter : 15kw Hpmont inverter
- Cable Carrier : Highly flexible, silent, high-speed cable carrier
- Command code : G code
- Table : Double feeding table
- Software : Coreldraw /Artcam software (Not Inclided)
- Package size : 1100*1000*1800mm 4900*1850*1800mm
- Gross weight : 2200KGS
