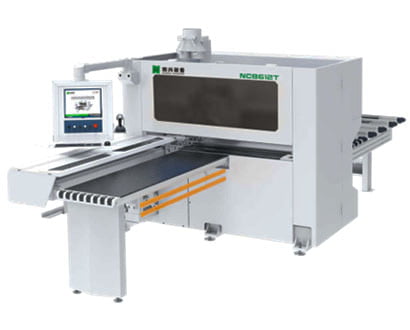

CNC 6-Sided Drilling Machine NCB612FT
₹5,350,000.00 ₹6,687,500.00
Available on Request
Highlights
An automatic tool change spindle (with C-axis), which can see automatic tool change and 360° rotational tool for multi-directional side milling
Standard configuration: Adjustable angle headcross right angle head,can operate a variety ofinvisible parts hole slots and other high-definitiondrilling and milling techniques.
Cross Right-Angle Head: Equipped with four independent tools, for easy installation and replacement. The tools are adjusted by a 360° rotation controlled by the C-axis, and each tool can perform multidirectional lateral milling.
Adjustable angle head: Adjustable from 0° to 90°, equipped with saw blade tool, controlled by C-axis to rotate 360° to achieve multi-directional grooving and invisible part slot processing
Inclined Lamino slot properties
Bevel patterns
TECHNICAL SPECIFICATIONS:
- Total power : 22.5 KW
- Machine size : 6,150 * 2,806 * 2,353 mm
- Power supply : 380V/50Hz
- Air supply : 0.6-0.7MPa
- Total weight : 3500Kg
- Control system Brand : SYNTEC
- Panel Length : 250-2400mm
- Panel Width : 30-1200mm
- Panel Thickness : 8-50mm
- Max. traveling speed (X /U）axis : 135m/min
- Max. traveling speed Y axis : 75m/min
- Max. traveling speed Z axis : 30m/min
- Working table Material : HPL+ steel
- Working table size : 2150 X 600
- Working table height : 960mm
- Transmission mode X axis : Rack and pinion
- Transmission mode Y axis : Rack and pinion
- Transmission mode Z axis : Ball screw rod
- Servo motor X axis : 2*0.75kw
- Servo motor Y axis : 3*0.85kw
- Servo motor Z axis : 3*0.85kw
- Boring blocks Boring block qty. : Top 1; Bottom 1
- Boring blocks Vert. drills qty (top) : 18
- Boring blocks Horizontal drills qty (top) : X: 3×3 + Y: 2×2
- Boring blocks Vert. drills qty (Bottom) : 9
- Boring blocks Max drill diameter : 35mm
- Boring blocks Drill spacing : 32mm
- Boring blocks Rotation speed : 4000rpm
- Boring blocks Shank diameter : 10mm
- Main spindle : ER25
- Main spindle power : 3.5kw×1 max.18000rpm
- Main spindle Tool slot : 4 (ATC)
- Main spindle Crosshead : 0-800mm process travel
- Dust collector qty : 2
- Dust collector diameter : Top 150mm×1
- Dust collector : Lower 125mm×1
- Dust collector speed greater than or equal to : 28m/min
