Dust Collector AXC | 7.5HP | 4725 CMH | Duct | NB612FT2
₹275,000.00 ₹343,750.00
Available on Request

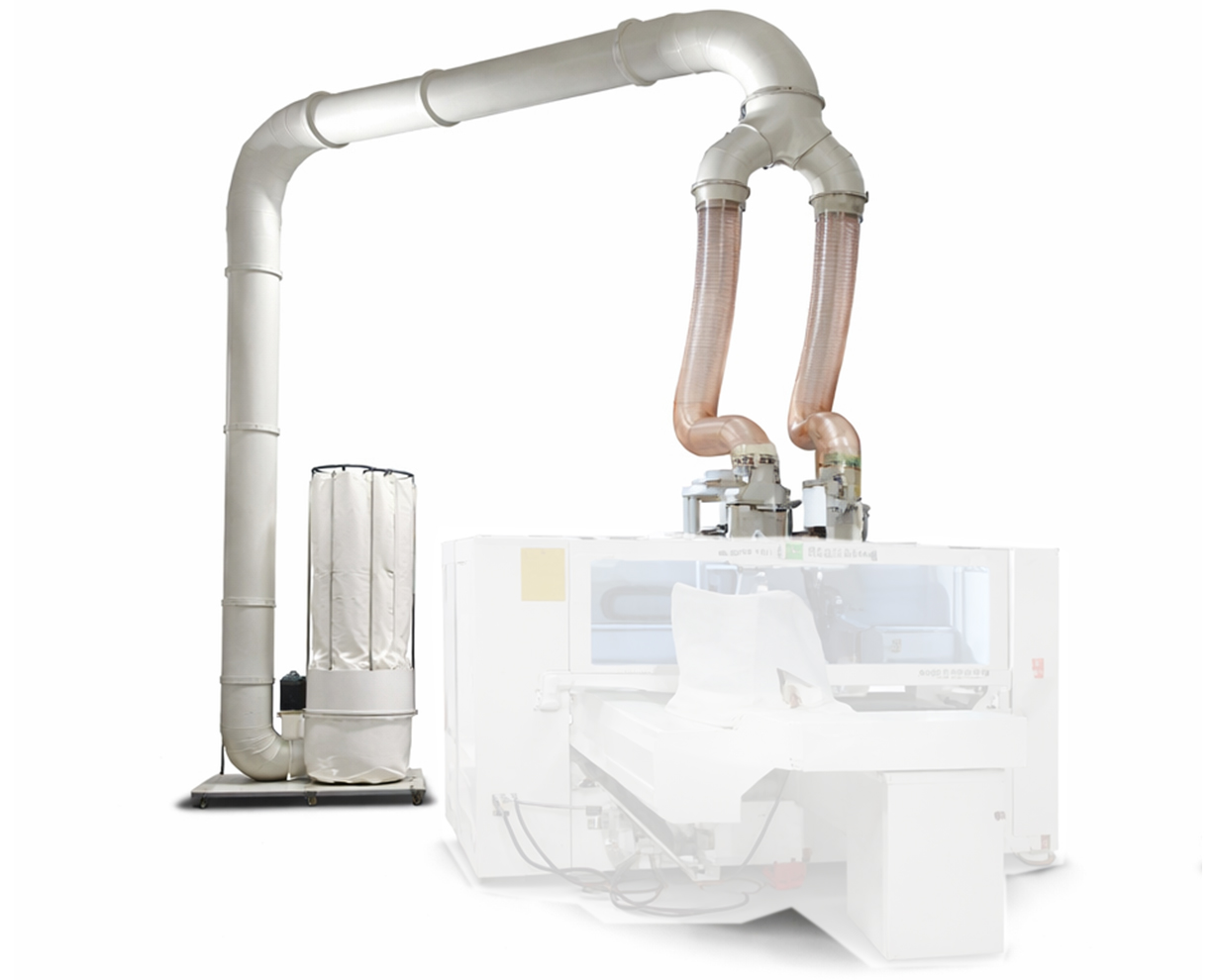

Portable Dust Extraction with High Suction Efficiency for NB612FT2
Technical Specification:
- Suction Port Size : Dia 200 x 1 No Dia 125 x 1No
- Motor : 7.5 HP/2P
- Dust Collector Capacity : 6000-6500
- Required Capacit At 30 m/s : 4725 CMH
- Fan Model + Dust Colletor : AXC-HMS-26-ARR ''A '' AXC-PDC-7.5 HP- DS
- MPN : AXC-PDC-7.5 HP- DS
- No.of Top Bag : 14 high efficiency Polyester Needle felt Non-woven anti- static Filter bags with Teflon coating inside.
- No.of Bottom Bags : 2 collection bag to collect .35 m3
- DOL starter.
- PDC Suction adaptor & Machine adaptor.
- 1Set Total assembly mounted on a rigid movable trolley with wheels having jack.
- 1Set GI fabricated and powder coated special Aerodynamic ducts on top of machine with duct supports, wire rope support for hanging ducts from roof with Clamps, Turn buckle for tensioning.
- 1Set PVC Flexible Hose and Clamps.
- 1Set PU Flexible Hose & Clamps. Φ200
