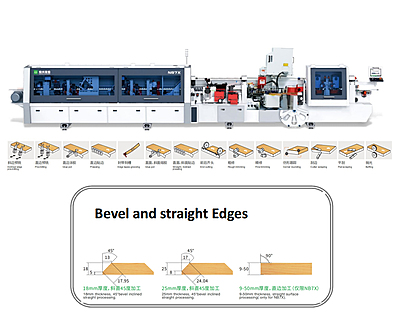

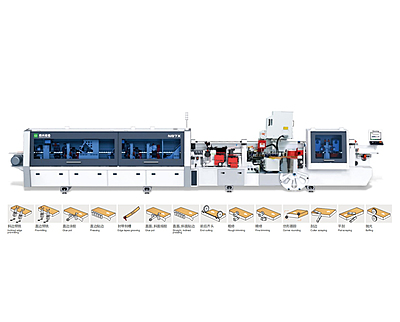

Edge Banding Machine for Inclined Edge NB370-(NB7X)
FESTURES:
- Release agent sprayer
- Bevel edge milling 45 degrees diamond forming bevel cutters
- Straight surface Pre-milling 2 diamond cutters
- Pre-heating
- Full straight tape bracket
- Half bevel tape feed and edge tape grooving device
- Full straight edge-Pre-Melter gluing system
- Auto glue pumping + 25kg glue basin
- Bevel and straight gluing
- Hot air blowing gun (2pcs)
- Edge tape pressing
- Lubrication system
- End trimming
- Rough Trimming unit
- Fine trimming unit
- Corner trimming unit
- Fine trimming
- Flat scraping
- Clean agent sprayer
- Buffing
- Dust collection 125mm
- Remote Switch
- Safety device Feeding protector and thickness detection, E-Stop
- Control system 10" Touch Screen
- Energy saving mode
- Electric equipment
TECHNICAL SPECIFICATIONS:
- Panel length : 150mm
- Panel width : 120mm
- Straight panel thickness : 9 - 50mm
- Bevel+straight panel thickness : 15 - 25mm
- Edge Tape Thickness : 0.6 - 2mm
(need to leave more straight surface when use 2mm tape, recommend ≤1.2mm)
- Feed Speed : 14m/min ; Straight Edge 24m/min
- Min. panel size : 150x120mm
Total Power : 42kw 415V/50hz/3ph
- Overall dimensions : 9800x1050x1650
- Net Weight : 3900kg
