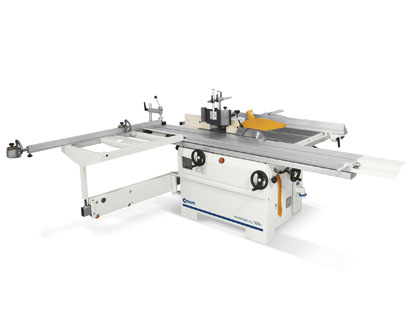

Combination Machine

FEATURES

• Pre-setting for mortiser

• New design of the dust-conveyor, to protect the cutter block, for further system safety increase

• Version with maximum squaring stroke 2600 mm

• Belt driven scoring unit complete with blade - 2 extra handwheels for the operating unit's movement

• Professional fences

• Xylent spiral knife cutter block with 3 series of knives

• Xylent maintenance kit

• Cast iron mortiser - 0-16 mm self-centering (Wescott type) chuck

• Bridge planer protection (standard for CE version)

• Anodized aluminium tables for spindle moulder fence

• Spindle moulder shaft of 30 mm diam.

• Locking by countersunk socket screw TECHNICAL

FEATURES

• PLANER

• useful working width [mm] : 300

• cutter block diameter (mm)/n. standard knives  : 72/3

• standard knives dimensions [mm] : 300 x 30 x 3

• max. stock removal [mm] : 4

• surfacing tables total length [mm] : 1510

• thicknessing table dimensions [mm] : 585 x 300

• feed speed on thicknesser [m/min] : 7

• min. ? max. working height on thicknesser [mm] : 3 ? 230 CIRCULAr SAW

• cast iron saw-spindle moulder worktable dimensions [mm] : 1115 x 335

• blades tilting  : 90? ? 45?

• max. saw blade diam. with scoring blade installed [mm] : 315

• max. saw blade projection from table at 90?/45? [mm] : 100/78

• max. squaring stroke (standard) [mm] : 1600

• cutting width on parallel fence [mm] : 820 SPINDLE MOULDER

• max. useful spindle length [mm] : 100*

• spindle moulder speeds (at 50 Hz) [rpm] : 3500/7000/10.000

• max. tool diameter when profiling [mm] : 210

• max. diam. of tool lowered under the table at 90? [mm] : 180 OTHER TECHNICAL FEATURES

• three-phase motors S6  :  5kW (6,6hp) 50Hz - 6kW (8hp) 60Hz

• exhaust outlets diameter [mm] : 120

• Spindle moulder available with following diameters:  : 30  32 - 35 - 40 - 50 mm 3/4" - 1" - 1 1/4" Frequently Asked QuestionsWhat SCM machines does Caple supply?Caple is an authorised SCM dealer supplying edge banders, wide belt sanders, panel saws, CNC nesting machines, and beam saws from SCM Group — one of Italy's leading woodworking machinery manufacturers.How does an SCM edge bander compare to entry-level edge banders?SCM edge banders feature precision German-engineered glue units, servo-controlled feed systems, and digital parameter adjustment — delivering superior edge quality, faster changeover, and longer service life versus entry-level machines.What is the lead time for SCM machines in India?Lead times for SCM machines vary by model and configuration. Contact Caple at caple.in/contact for current availability and delivery timelines.Does SCM equipment work with Indian wood species?Yes — SCM machines are engineered for hardwoods, softwoods, MDF, plywood, and particle board, including Indian species like teak, sheesham, and mango wood commonly used in Indian furniture manufacturing.What after-sales support does Caple provide for SCM?Caple provides installation, operator training, scheduled maintenance, and spare parts supply for SCM machines. Contact us at caple.in/contact.

FEATURES

• INCREDIBLE CUTTING WITH THE NEW SAW UNIT AND SLIDING TABLE

• SQUARING FRAME AND FENCE: MAXIMUM PERFORMANCE AS STANDARD - 90? . SIMULTANEOUS TABLES OPENING TOWARDS THE INSIDE OF THE MACHINE:  EXCEPTIONAL ACCESS

• Extruded anodized aluminium sliding table (dimensions 270 x 124 x 1600 mm) sliding on high precision hardened steel guideways

• Squaring frame (dimensions 1200 x 650 mm) complete with:

• telescopic fence with 2 crosscut flip-over stops

• eccentric clamp

• swinging arm support

• Saw unit with 315 mm maximum blade diameter with scoring blade (option) installed (blade not included)

• Simultaneous surfacing tables opening, at 90?     , towards the inside of the machine

• Adjustable spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers

• Integrated fence, for parallel cuts and surface planing

• Pre-setting for mortiser

• New design of the dust-conveyor, to protect the cutter block, for further system safety increase

• Belt driven scoring unit complete with blade  - 2 extra handwheels for the operating units movement

• Professional fences

• Xylent spiralknife cutterblock with 3 series of knives

• Anodized aluminium tables for spindle moulder fence

• Cast iron mortiser

• Spindle moulder shaft of 30 mm diam

TECHNICAL DATA

• PLANER:

• useful working width [mm] : 300

• cutter block diameter (mm)/n. standard knives  : 72/3

• standard knives dimensions [mm] : 300 x 30 x 3

• max. stock removal [mm] : 4

• surfacing tables total length [mm] : 1510

• thicknessing table dimensions [mm] : 585 x 300

• feed speed on thicknesser [m/min] : 7

• min.   max. working height on thicknesser [mm] : 3 - 230 CIRCULAR SAW :

• cast iron saw-spindle moulder worktable dimensions [mm] : 1115 x 335

• blades tilting  : 90? - 45 ?

• max. saw blade diam. with scoring blade installed [mm] : 315

• max. saw blade projection from table at 90?   /45 ?      [mm] : 100/78

• max. squaring stroke (standard) [mm] : 1600

• cutting width on parallel fence [mm] : 820 SPINDLE MOULDER :

• max. useful spindle length [mm] : 100*

• spindle moulder speeds (at 50 Hz) [rpm] : 3500/7000/10.000

• max. tool diameter when profiling [mm] : 210

• max. diam. of tool lowered under the table at 90  [mm] : 180

• three-phase motors S6  :  5kW (6,6hp) 50Hz

• exhaust outlets diameter [mm] : 120 Frequently Asked QuestionsWhat SCM machines does Caple supply?Caple is an authorised SCM dealer supplying edge banders, wide belt sanders, panel saws, CNC nesting machines, and beam saws from SCM Group — one of Italy's leading woodworking machinery manufacturers.How does an SCM edge bander compare to entry-level edge banders?SCM edge banders feature precision German-engineered glue units, servo-controlled feed systems, and digital parameter adjustment — delivering superior edge quality, faster changeover, and longer service life versus entry-level machines.What is the lead time for SCM machines in India?Lead times for SCM machines vary by model and configuration. Contact Caple at caple.in/contact for current availability and delivery timelines.Does SCM equipment work with Indian wood species?Yes — SCM machines are engineered for hardwoods, softwoods, MDF, plywood, and particle board, including Indian species like teak, sheesham, and mango wood commonly used in Indian furniture manufacturing.What after-sales support does Caple provide for SCM?Caple provides installation, operator training, scheduled maintenance, and spare parts supply for SCM machines. Contact us at caple.in/contact.
