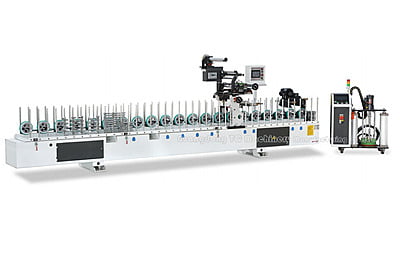

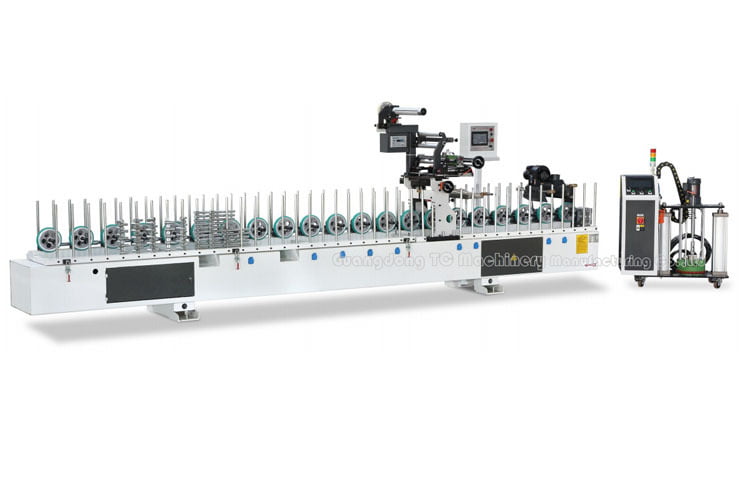

PUR Glue Profile wrapping machine
₹2,250,000.00 ₹2,812,500.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
Functions :
PUR profile Laminating machine is suitable for professional furniture
and acoustic manufacturer with Rolling material
( Matt PVC ,high glossy PVC foil, veneer ,melamine paper )
on different board (MDF ,PLYWOOD ,FOAM BOARD) ..
Glue type : PUR GLUE (JOWAT &KELEIBIRIT .)
Strengths :It has the advantage of no crushing, no bubbly and good quality
feature, as well as advanced technical, high precision, reasonable composition,
new structure, easy operation.
Parameter Details:
- 1,Max film covering width : 300mm
- Max process thickness : 90mm
- Min process length : 600mm
- Speed of material delivery :0-50m/min
- Sticking glue power : 5.5kw
- Motibity power : 6kw
- Heat power : 6kw
- Machine weight : 2500kg
- Max diameter of roll cover material : 400mm
- Structure size :600*2000*6000mm
- 2,The structure : feeding parts(pressure rollers and fix bracket) + brush dedust system +blower dedust system +one
stand roller for pvc foil +operation Screen +glue gun connector and pvc connector
2,PUR Barrel
- Plastic buckets specifications : 20kg（5gallon）
- The inner diameter of the p;astic buckets : 280mm (customrized 286mm)
- Heat power : 5.5kw
- Temperature range :Normal temperature -180℃
- Woring pressure : 0.4 - 0.8MPa
- Platen stroke : Max:500mm
- Max motor speed :60rpm
- Max out of plastic pressure : 50kg/cm² Control system : PLC +touched screen
- Insulation function : yes
- Over-temperature alarm : yes
- The low plastic bits alarm : yes
- Dimensions : L1000*W550*H1450
- Net weight :400kg
- Input voltage 3Ф/380V/50HZ
