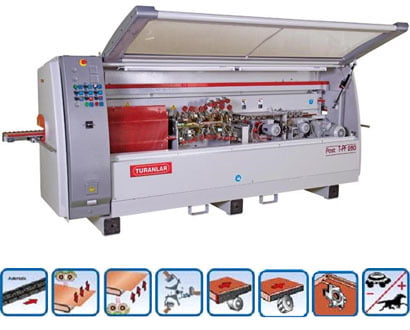

Through Feed Postforming machine TPF280

• FUNCTION

• Heater unit

• Middle wave glass heaters

• Form pressure roller unit

• Steel cooled form wheels

• Milling

• Grooving

• Buffing

TECHNICAL DATA

• Electrical Level : 400V 50Hz 16A

• Speed : 0 - 12 m/min

• Laminate Thickness : 0.4 - 1mm

• Laminate Height : 70mm

• Total Power : 7.6kW

• Working Height : 870mm

• Milling Motor : 0.37kW / 12000rpm

• Grooving Motor : 0.55kW

• Buffing Motor : 0.18kW

• Dust outfeed diameter : 150mm

• Machine Dimentions : 920mm x 4000mm x 1600mm

• Machine Weignt : 1600kg
