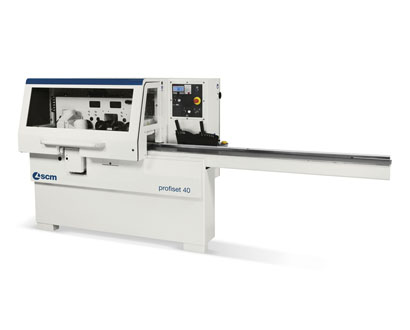

SCM, Automatic Through feed Planer Moulder PROFISET40 2300mm

₹1,750,000.00 ₹2,187,500.00
Warranty
12 Months
Country of origin
Italy
GST Extra
18%
Available on Request
TECHNICAL DATA:
- Min. working width (finished section) 23mm
- Max. working width (finished section) 180mm
- Min. working height (finished section) 6mm
- Max. working height (finished section) 105 mm
- Min. length of single workpiece 300 mm
- Feed speed 6 - 12 m/min
- Feed motor power 6 - 12 m/min
- Horizontal spindles motor power (single) 6 - 12 m/min
- Vertical spindles motor power (single) 7,5 kW (10 Hp)
- Spindle speed 6.000 rpm
- Spindles diameter 35mm
- Vertical spindles length 120mm
- Horizontal spindles length 190mm
- Min/max cutterheads diam. on horizontal spindles 100mm
- Min/max cutterheads diam. on vertical spindles 100-120
- Profiling capacity without axial stroke on vertical spindles 10mm
- Groups adjustment with respect to the diameter of cuttersheads
- Feed rollers diameter 120mm - Infeed worktable length 1700mm
- Fast adjustment of infeed table and fence 10mm
- Manual pump for table lubrication STD - Tools Optional
- Exhaust outlets diameter No 4 120mm
- Equipment in conformity with CE Standards STD
- 2300 mm infeed table
