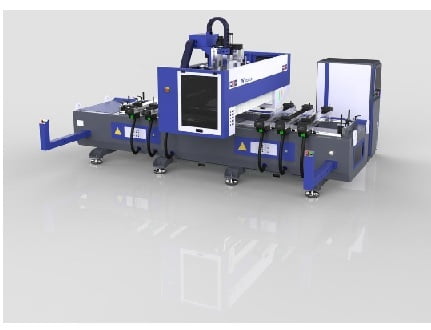

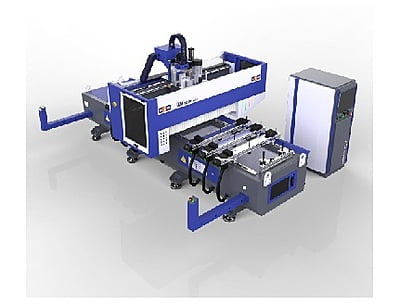

CNC router machine K9-1330PTP
₹5,600,000.00 ₹7,000,000.00
Available on Request
TECHNICAL DATA:
- Table Structure : 6 PTP beams x each 4 cups
- Working Size : 1300 x 3000 x 300mm
- Control System : Taiwan Syntec 60WA control system
- Spindle : HITECO ATC Air-cooled spindle
- Inverter : FULING 11kw inverter
- Motor and Driver : Japan Yaskawa 2900w/1800w/1800w servo motor and driver
- Tool Magazines : Linear auto tool change with 12 slots under the gantry
- Reducer : Japan SHIMPO reducer
- Pop up pins : Pop up pins 8 sets
- Drilling unit : CWD-V9H4S1 9+3+1 Drilling unit
- Aggerated head : HITECO aggerated head
- Vacuum Pump : Golden Bridge Vacuum blower pump
- Rails : Taiwan HIWIN 30/25/25mm square linear guide rails
- Rack : 1.5M Helical rack gears transmission on XY axis
- Screw : Taiwan 3205 TBI ball screw on Z axis
- Control Cabinet : Independent control cabinet
- Lubrication : Auto lubrication
- Limit switch : Autonics Limit switch
- Electrical Components : Schneider electrical components
