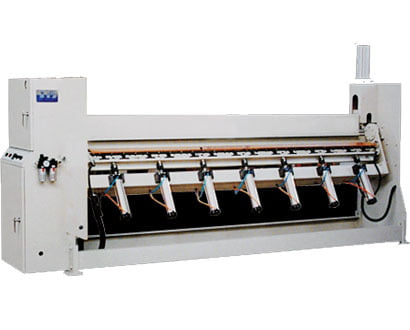

Postforming Machine

₹425,000.00 ₹531,250.00
Warranty
12 Months
GST Extra
18%
Available on Request
SLIENT FEATURES: - 3 Clamping cylinders for better workpice holding. - 8 Cylinders for heater operation to ensure uniform pressure. - Short job / Long job selection. - Full Round / Half round settings. - Ground & Hard chrome plated heater bar for smooth operation & Long life. - Heater bar temperature variable upto 200 Deg Celsius. - Adjustable rear stoppers for doing repetitive Jobs. - 9 Program PLC for fully Automatic Operations. TECHNICAL DATA: - Max. Workpiece length - 2440 mm - Min. Workpiece length (Recommended) - 600 mm - Min. Workpiece width - 160 mm - Max. Workpiece thickness - 100 mm - Min. Workpiece length - 16 mm - Connected load - 3 KW - Electric Supply - 3 Phase 415V AC other voltages optional - Compressed Air Requirement - 30 LPM at 6 bar
