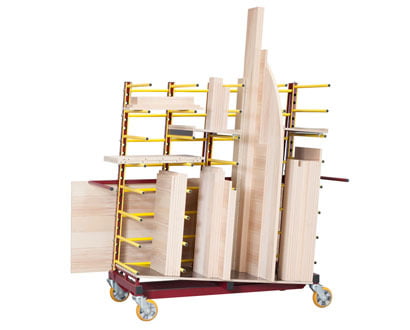

JOWI Nautilus Transport Rack

₹170,000.00 ₹212,500.00
Warranty
Not Applicable
GST Extra
12%
Available on Request
Equipment: -3 x L-shaped uprights with telescopic extensions for large area boards -2 x i-shaped uprights -40 support tubes SR23-0590 -1 x bottom shelf: 1,393 x 590 mm (max. load capacity at 600 kg) -2 x intermediate shelfes: 374 x 590 mm (max. load capacity for each: 30 kg) -Plug-in system with locking screw for support tubes -23 slots for support tubes per upright -Diameter of the support tubes: 23 mm -Working length of the support tubes: 590 mm -Solvent resistant tube coverings, compatible with common varnishes -8 zinc coated cross tubes 1,444 mm long -4 steering castors, ? 160 mm with ball bearings, -cast polyurethane tread, 2 of them with brake -Max. load capacity on 1 support tube: 15 kg; on the whole rack: 600 kg -Requirements: even load distribution, no shock loads -Length x depth x height: 1.570 mm x 850-930 mm x 1.730 mm Steel construction, varnishing: RAL 3004, purple red.
