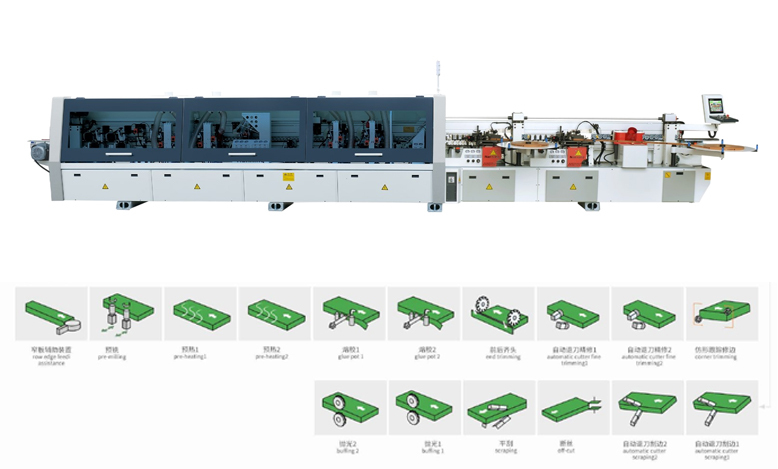

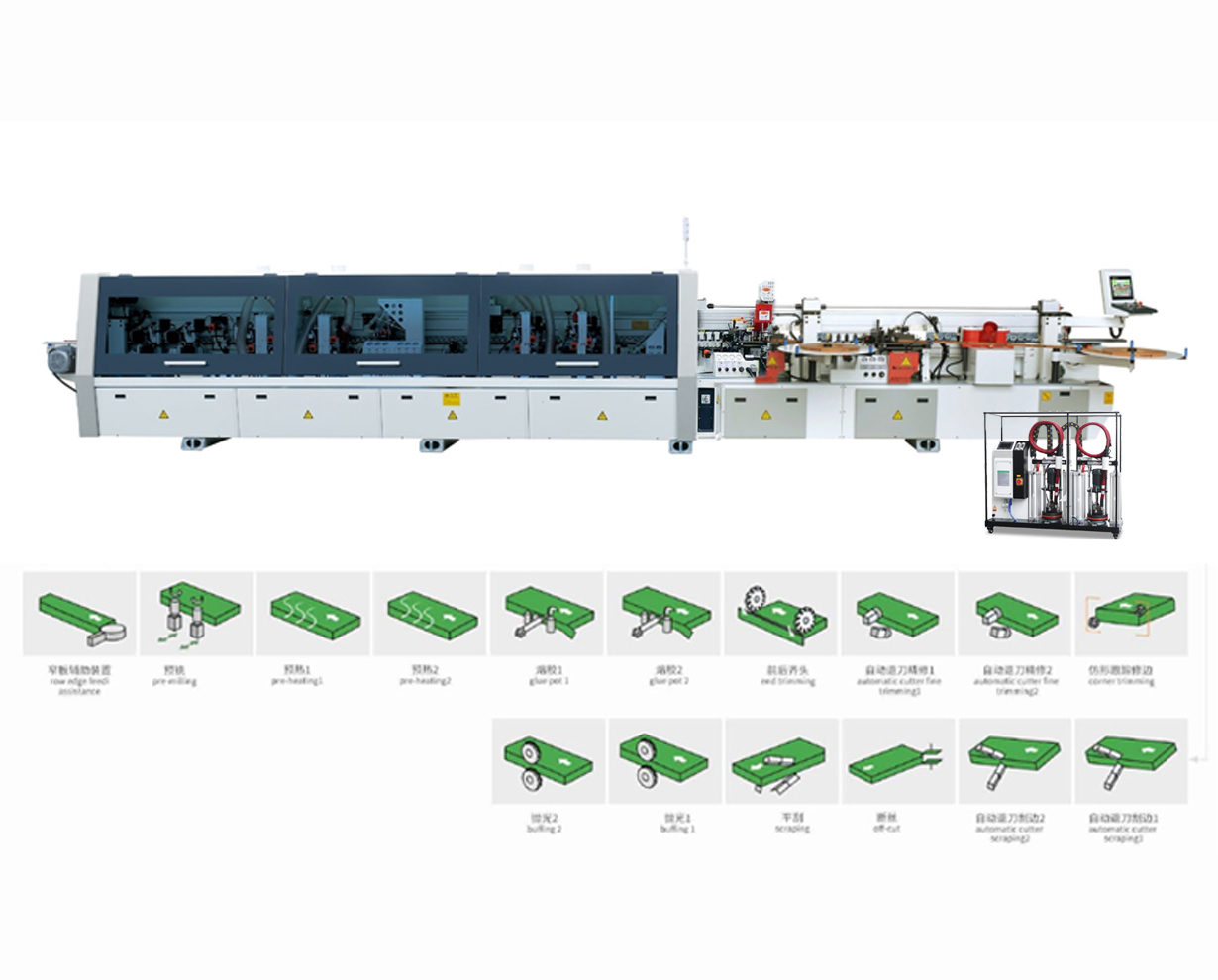

Nanxing Edge Banding Machine NB7CJMN 20kg PUR without pre-melt
FEATURES:
- Premilling
- Assistance for Narrow Edge
- 2 Pre-heating sets

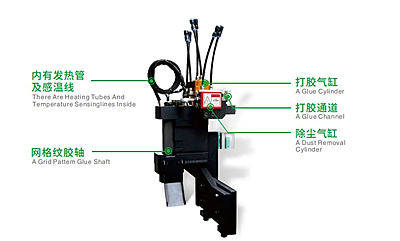

- 2 Sets Gluing Unit
- 2 sets servo edge tape feeders
- 2 Sets Pressure Roller
- Lubrication System
- End Trimming
- Fine Trimming units with 2 Pneumatic Positions
- Corner Rounding Unit
- 2 Set Scrapping Units with 2 Pneumatic Positions
- Off Cut Device and flat scrapping unit
- 2 Sets of Buffing Units
- Safety Device Feeding Protector & Thickness Detection
- Remote Switch & Indicator Light
- Control System 10" Touch Screen
- Energy Saving
- Production Report
- Narrow Workpiece Solution

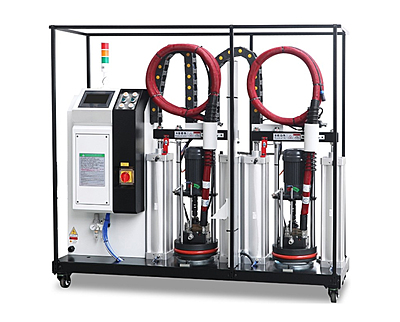

- 20 kg PUR pre-Melter
- 2 Colour glue pot without pre-Melter
- Upper glue pot1 pre-set for PUR
TECHNICAL SPECIFICATIONS :
- Narrow long edge : 40×200×9mm
- Narrow short edge : 45×200×9mm
- Panel thickness (narrow edge Corner trim on) : less than or equal to 25mm
- Panel thickness : 9-60mm
- Edge tape thickness : 0.4-3mm
- Feed speed : 16/18/20m/min
- Feed speed(narrow edge : 16m/min
- Corner trim on) :
- Dust extraction Dia. : 125mm×5
- Total power : 30.1kw
- Power Supply : 3P 415V / 50Hz
- Overall dimension : 9800×1450×1650mm
- Net weight : 3670kg
