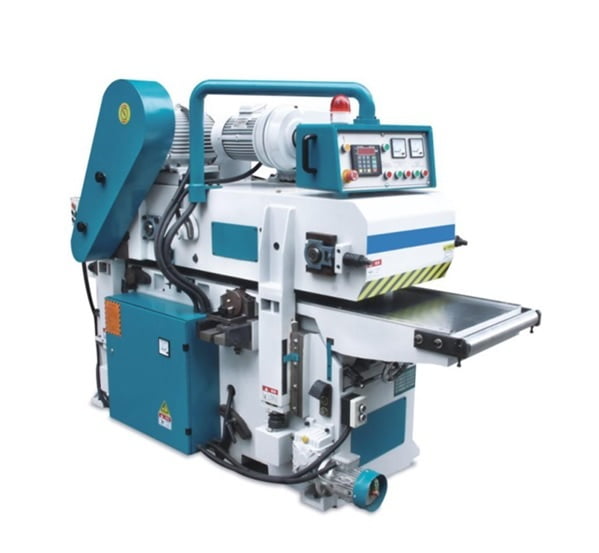

Double Side Planer
₹1,700,000.00 ₹2,125,000.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAL DATA:
- Max. Working Width: 630mm
- Max. Working Thickness: 200mm
- Min. Working Length: 260mm
- Max. Cutting Depth (Up): 8mm
- Max. Cutting Depth (Down): 5mm
- Cutting Tool Dia.: ������101mm
- Spindle Speed: 5000rpm
- Feed Speed: 0-16m/min
- Feeding Motor Power: 3kw
- Top & Bottom Spindle Motor: 11+7.5kw
- Total Power: 21.5kw
- Weight:2800Kg
- Overall Dimensions:2250x1180x1700mm
*Equips Straight Cutter
