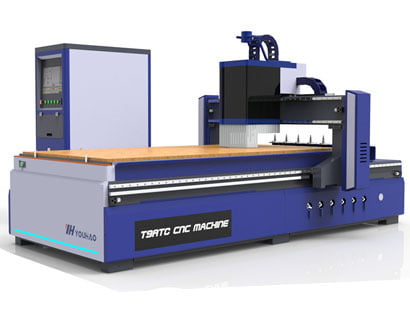

Flatbed CNC routing machines T9-1328C(ATC) | 1300*2800*200 | 24 m/mm | Servo Motor | 19.5 kW | Vacuum+T-Slot
₹2,450,000.00 ₹3,062,500.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
TECHNICAL SPECIFICATIONS:
- Machine Bed : Heavy duty machine bed
- Table : Vacuum 6 zones + T-slot table
- spindle : ITALY HSD 9kw ATC air-cooled spindle, ER32, 24000 rpm
- Inverter : Fuling 11 kw inverter
- Tool Magazine : 6 slots linear tool magazine
- System : Taiwan SYNTEC 60CA
- Motor : Japan YASKAWA AC servo motor
- Reducer : XY with planetary reducers
- Rails : Taiwan HIWIN 25mm square linear guide rails
- Rack : 1.5M Helical rack gears transmission on XY axis
- Screw : Taiwan 2505 TBI ball screw on Z axis
- Lubrication : Auto lubrication
- Control Cabinet : Electric panel to be inside the machine.
- Electrical : Schneider electrical components
- Software : ALPHACAM/TYPE3/ARTCAM etc.
- Pump : German BECKER vacuum pump 5.5KW
- Random tools : 9 pcs
- Other parts : 1 set
PARAMETERS:
- Working size : 1300*2800*200 mm
- MAX. speed : 80m/min
- Cutting speed : 24m/min
- Total power : 19.5KW
- Power supply : AC 380V/220 3PH
- Positioning accuracy : 0.03mm/300mm
- Repetitive positioning accuracy : 0.03mm
