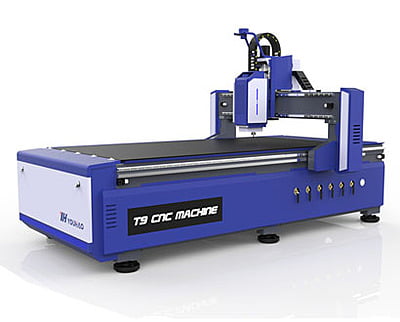

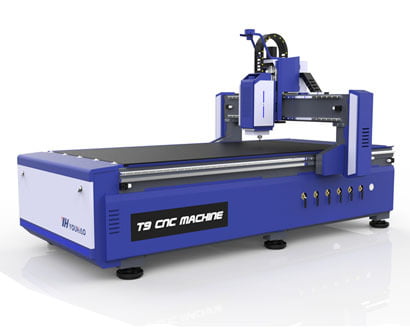

Flatbed CNC routing machines T9-1325 | 1300*2500*200 | 45 m/mm | Servo Motor | 6 kW | Pump
₹975,000.00 ₹1,218,750.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
TECHNICAL SPECIFICATIONS:
- Machine Bed : Heavy duty machine bed
- Table : Vacuum 6 zones + T-slot table
- spindle : HSD 6kw air-cooled spindle, ER25, 18000 rpm
- Inverter : Fuling 7.5 kw inverter
Tool Magazine : NA
- System : Richauto DSP A11 controller
- Motor : DELTA - Servo motor and drive
- Reducer : XY with planetary reducers
- Rails : Taiwan HIWIN 25mm square linear guide rails
- Rack : 1.5M Helical rack gears transmission on XY axis
- Screw : Taiwan 2505 TBI ball screw on Z axis
- Lubrication : Auto lubrication
- Control Cabinet : Electric panel to be inside the machine.
- Electrical : Schneider electrical components
- Software : ALPHACAM/TYPE3/ARTCAM etc.
- Pump : JQT 5.5kw blower pump
- Random tools : 9 pcs
- Other parts : 1 set
PARAMETERS:
- Working size : 1300*2500*200 mm
- MAX. speed : 45m/min
- Cutting speed : 15m/min
- Total power : 14.5KW
- Power supply : 400V 3Ph 50Hz (220V/1Ph/50Hz optional)
- Positioning accuracy : 0.03mm/300mm
- Repetitive positioning accuracy : 0.03mm
