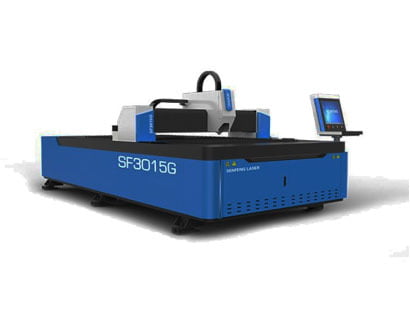

Fiber Laser Cutting - 1500W
₹3,250,000.00 ₹4,062,500.00
Warranty
12 Months GST Extra
18% Available on Request
TECHNICAL PARAMETERS: - Working size : 3000mm*1500mm - x-axis travel : 3000mm - Y-axis travel : 1500mm - Z-axis travel : 120mm - Laser power : 1500w Raycus source - x/Y Axis positioning accuracy : +/-0.05mm/m - x/Y Axis repeated positioning : +/-0.02mm - Maximum velocity of movement : 100m/min - Outline size : 4600mm*2460mm*1360mm CONFIGURATION: - Model : SF3015G - Laser device : 1500w Raycus - Laser head : Raytools Auto focus laser head - Controlling system : CypCut - Machinery : LAPPING/SENFENG LMN/EREFAT - Electromechanical : SIEMENS - Cutting bed : SF3015G - Water cooling : Specialized - Dust exhausting fan : Specialized - Document : Operating
