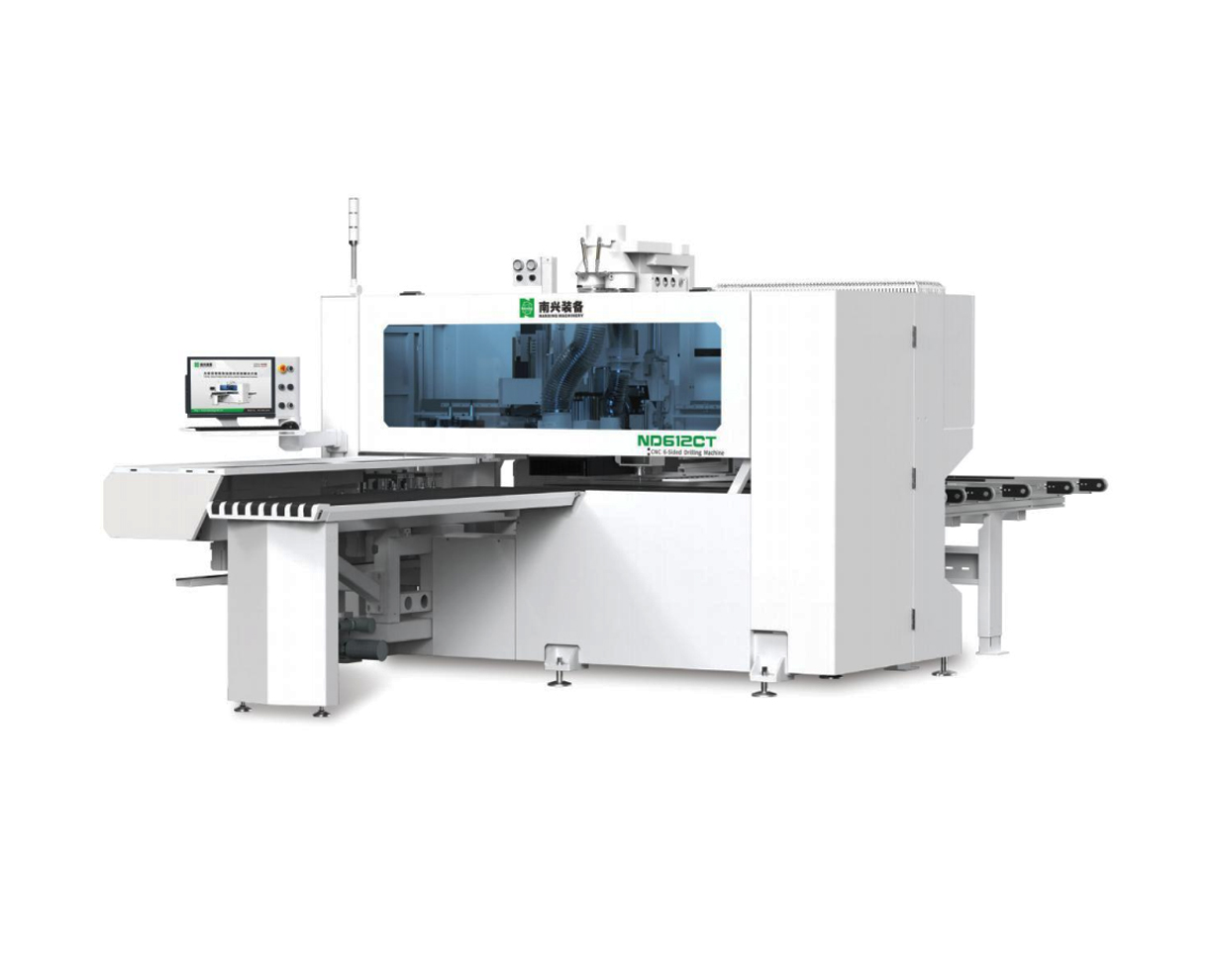

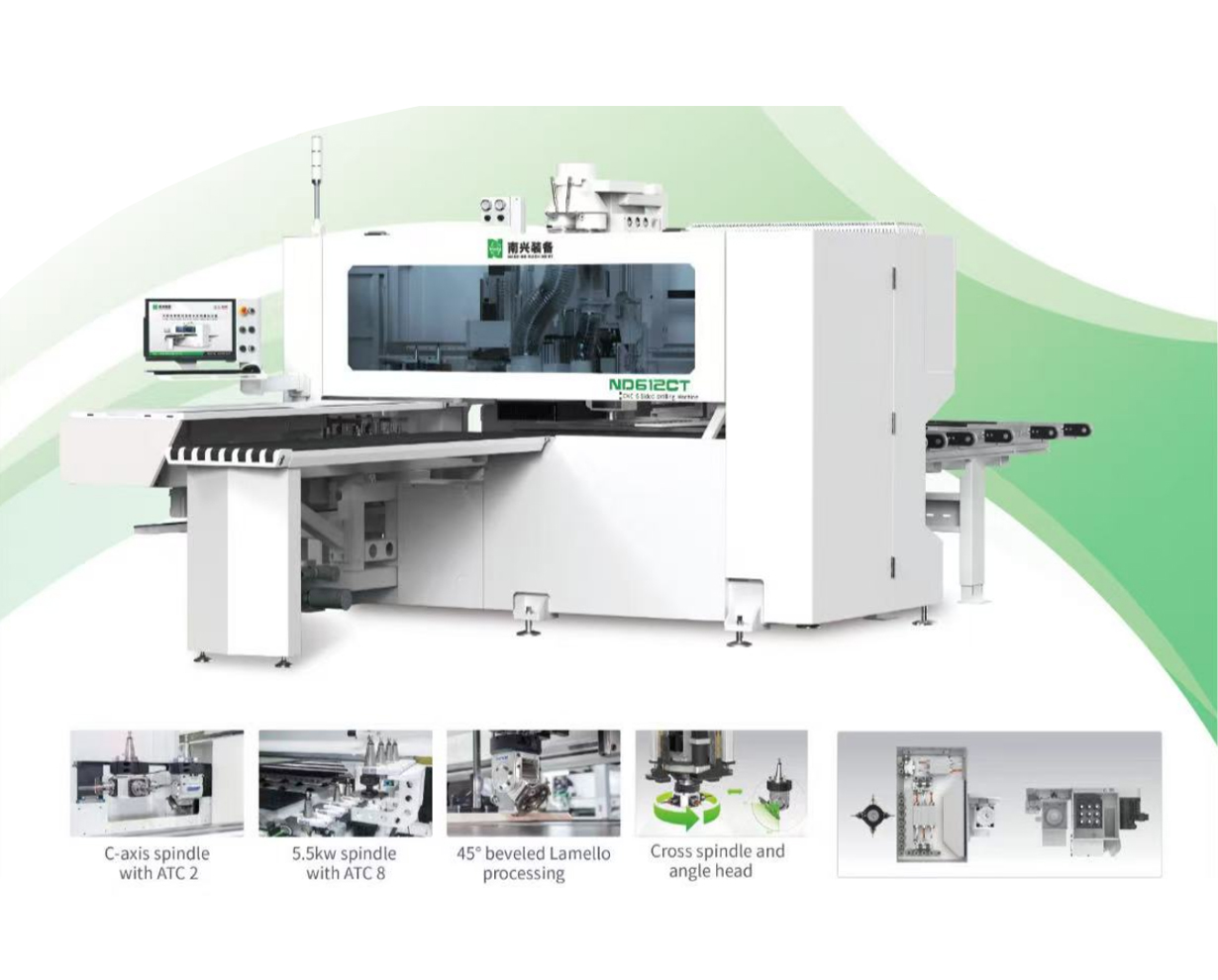

CNC 6-Sided Drilling Machine ND612CT 415V
FEATURES:
- Infeed air float table
- Feed out
- Positioning
Side aligner
Air jet
Support plates
- Accurate movement of each axis
- Auto grease
- Board length detector
- Top Processing unit: 5.5kw 2 slots ATC
- Bottom Processing unit: 3.5kw
- 1*Main spindle with C axis & 2-slot ATC
- 1*Auto tool changing Spindle
- Top Drilling block 5.5kw main spindle
- Quick change tool
- Stack processing
- Spindle Plate
- Removable rear working table
- Anti-handling device for infeed table
- High-quality cable chain
- Hand controller
- Start button & pedal switch
- Industrial computer
- Control system SYNTEC CNC
- Bar-code reader
- File format support. MPR, DXF, BAN, BPP, PDX; XML; XXL.
- One-head aggregate for side routing
- Board thickness sensor
- Hand wheel
- #90901.00690 saw blade for lamello
- Air jet for Gripper
- Standard Toolbox for testing
TECHNICAL SPECIFICATIONS:
- Total power : 22.5 KW
- Machine size : 6,150 * 2,806 * 2,353 mm
- Power supply : 380V/50Hz
- Air supply : 0.6-0.7MPa
- Total weight : 3500Kg
- Control system Brand : SYNTEC
- Panel Length : 250-2400mm
- Panel Width : 30-1200mm
- Panel Thickness : 8-50mm
- Max. traveling speed (X /U）axis : 135m/min
- Max. traveling speed Y axis : 75m/min
- Max. traveling speed Z axis : 30m/min
- Working table Material : HPL+ steel
- Working table size : 2150 X 600
- Working table height : 960mm
- Transmission mode X axis : Rack and pinion
- Transmission mode Y axis : Rack and pinion
- Transmission mode Z axis : Ball screw rod
- Servo motor X axis : 2*0.75kw
- Servo motor Y axis : 3*0.85kw
- Servo motor Z axis : 3*0.85kw
- Boring blocks Boring block qty. : Top 1; Bottom 1
- Boring blocks Vert. drills qty (top) : 18
- Boring blocks Horizontal drills qty (top) : X: 3×3 + Y: 2×2
- Boring blocks Vert. drills qty (Bottom) : 9
- Boring blocks Max drill diameter : 35mm
- Boring blocks Drill spacing : 32mm
- Boring blocks Rotation speed : 4000rpm
- Boring blocks Shank diameter : 10mm
- Main spindle : ER25
- Main spindle power : 3.5kw×1 max.18000rpm
- Main spindle Tool slot : 4 (ATC)
- Main spindle Crosshead : 0-800mm process travel
- Dust collector qty : 2
- Dust collector diameter : Top 150mm×1
- Dust collector : Lower 125mm×1
- Dust collector speed greater than or equal to : 28m/min
- C axis aggregate
