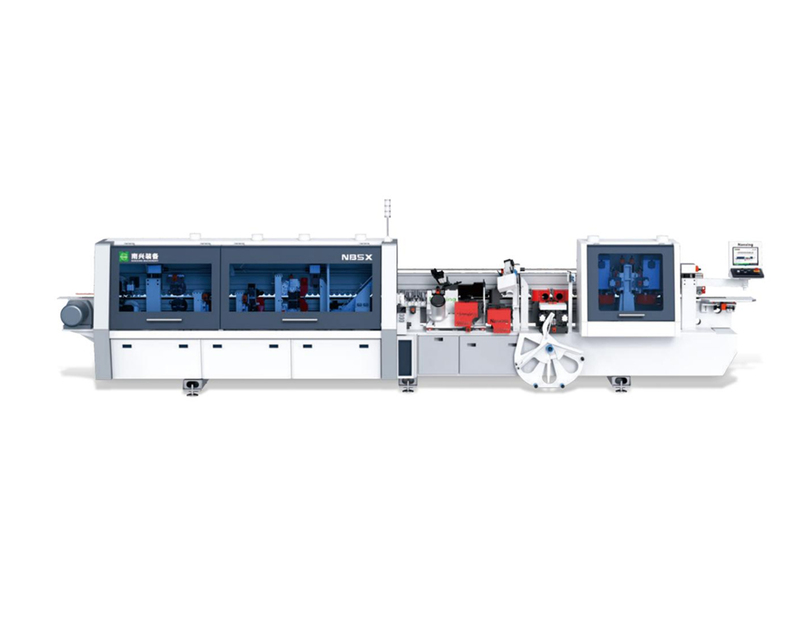

Nanxing Edge Banding Machine NB5X for Inclined Edges
Configuration:
- Spraying device (release + clean agent)
- Bevel edge milling
- Straight edge pre-milling
- Pre-heating
- Edge tape grooving device
- 2 Gluing station Bevel and straight gluing
- Edge tape pressing
- Hot air blowing gun (2pcs)
- End trimming
- Rough Trimming unit
- Bottom Fine trimming unit
- Bottom Profile scraping unit
- Flat scraping unit
- Buffing
- Independent suction hood Dia. 125mm x 6
- Control system 10’’ touch screen
- Energy Saving : Auto Stand-by mode according to setting time
- Production report
Safety device
- Feeding protector and thickness detection
- Interval feeding detection system
- E-STOP
- Remote switch & Indicator light
TECHNICAL SPECIFICATIONS:
- Panel length : 150mm
- Panel width : 120mm
- Min. panel size : 150 x 120mm
- Panel thickness : 18-25mm
- Edge tape thickness : 0.6-2mm (Full inclined)
- Edge tape thickness : 0.6-2mm (half inclined)
- Feeding speed : 16/14m/min
- Dust collector Dia. : 125mm x 6
- Total power : 33kw
- Power Supply : 3P 415V / 50hz
- Overall dimension : 7700×1050×1650mm
- Net weight : 3000kg
