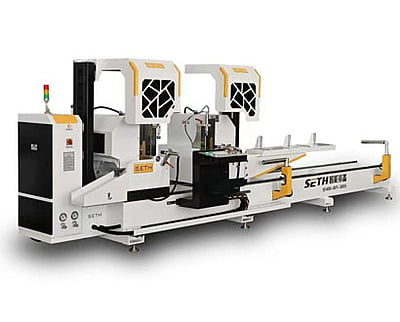

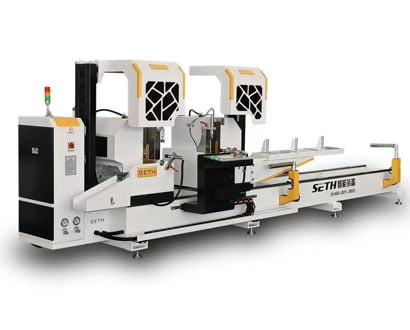

CNC Double Head Cutting Machine LJZ2-CNC-500*4300
₹672,000.00 ₹840,000.00
Available on Request
TECHNICAL SPECIFICATIONS:
- Power supply : 380V/50Hz
- Saw head motor : 2×3.0kW 3200r/min
- Working pressure : 0.6~0.8MPa
- Air supply : 60L/min
- Cutting length : 380-4300mm
- Cutting width : Max. 140mm
- Cutting height : Max. 220mm
- Max. cutting slope : 45˚140×180mm 90˚140×220mm
- Cutting angle : 90˚ - 45˚
- Feeding speed : 0 - 3m/min
- Saw blade specification : ø500×4.4×ø30 Z="120
Overall dimension : 5800X1800X1500mm
- Weight : 1450kg
