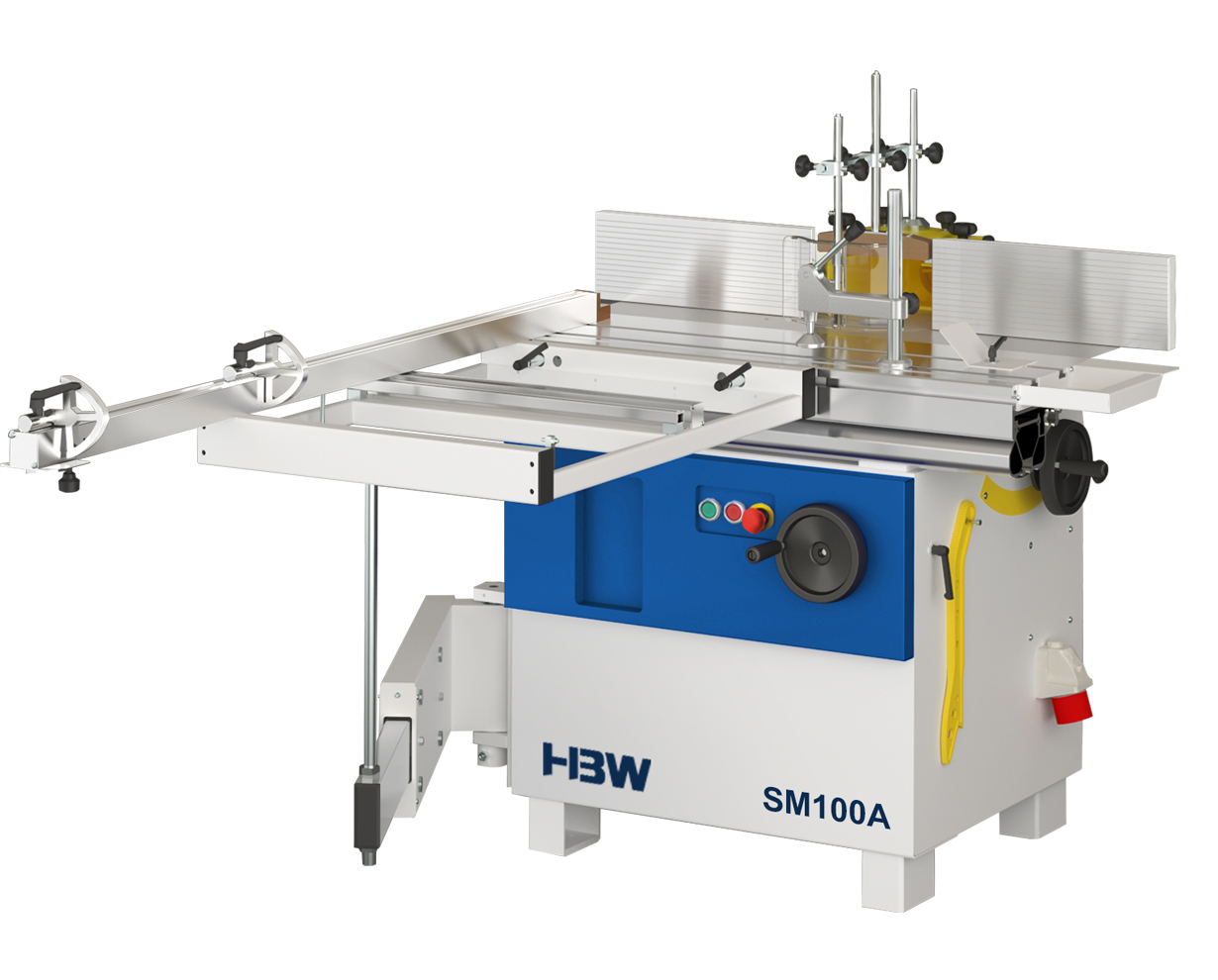

Spindle Moulder/3*400V/50Hz/30mm spindle
₹200,000.00 ₹250,000.00
Available on Request
• with extension table and cross cutting fence
TECHNICAL DATA
• Spindle Diameter : 30mm
• Spindle Speed : 1400/3500/6000/8000rpm
• Max. Spindle stroke : 140mm
• Spindle length : 130mm
• Spindle tilt in deg. : -5 45
• Max. Table opening dia. : 220mm
• Max. Tool dia. Under the table : 200/250mm
• Height of table : 890mm
• Max. height of machine : 1300mm
• Table size : 1000 x 350mm
• Extractor port dia. : 100mm
• Net/gross weight : 235/280kg
• Power : 3*400V/50Hz
