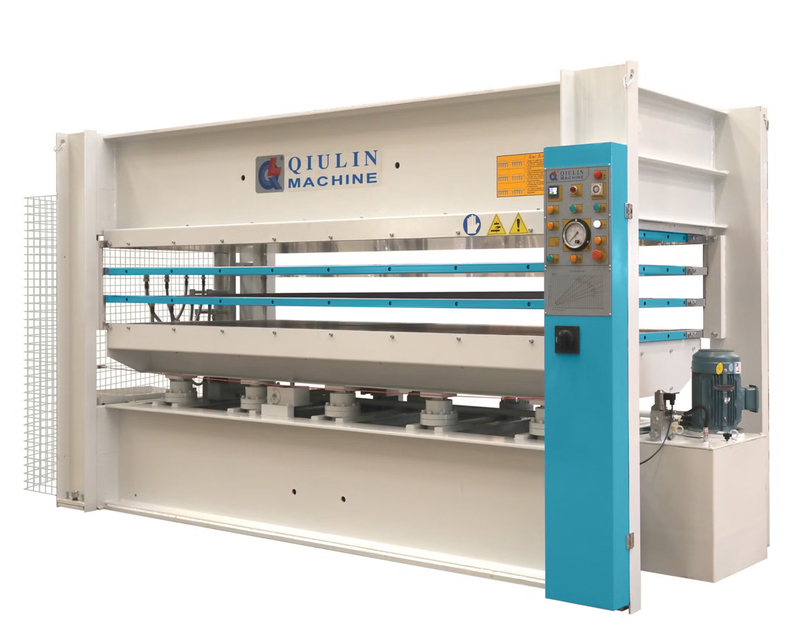

Hot Press Machine 160 Ton, 3 Layer Solid Drilled Platen

₹4,275,000.00 ₹5,343,750.00
Warranty
12 Months
GST Extra
18%
Available on Request
TECHNICAl DATA:
- Total pressure : 1600KN(160T)
- Specific pressure: 4.1gf/cm2
- Working layer 3 layers
- Platen No.& Size 4-3200x1300x42mm(solid steel drilled hot platen covered with mylar)
- Platen opening 120mm
- Cylinder No.& Dia. : 10-dia 85mm
- Max temperature: 140?
- Heating way Electric heating with thermal oil
- Heating medium: thermal oil
- Installation power : 77.5kW
- Platen opening way: Automatically
- Loading way : Manually
- Voltage : 3PE 415V 50Hz
Specifications
Presses Specifications
  • Tons
    160Tons
  • Platen Size
    3200x1300mm
  • Daylight
    3
  • Working Thickness
    120 mm
