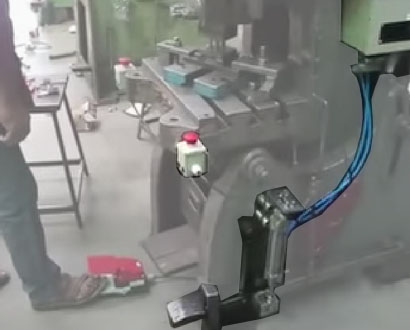

Safety System for Power Presses above 50T Capacity
₹32,500.00 ₹40,625.00
Warranty
Not Applicable GST Extra
18% Available on Request
SPECIFICATION
ELECTRICAL
- Voltage: 230VAC, Single phase, 50Hz
- Current: 0.5Amps
PNEUMATICS
- Pn. Pressure: 6 Bar
- Air Quality: Dry, Unlubricated, Filtered Air
- 4.82 Lit./Min. of compressed air @ 6 bar pressure
- @30 Strokes/Minute Speed
MECHANICAL
- Response Time: Less than 0.5sec
- Max Speed: To be rated speed of operation of Power Press
Note: Adhere to our recommendations on Air preparation units and electrical wiring prior to installation of the Safety system.
