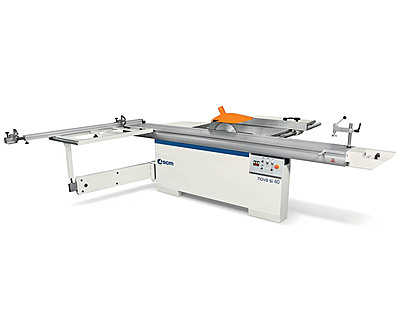

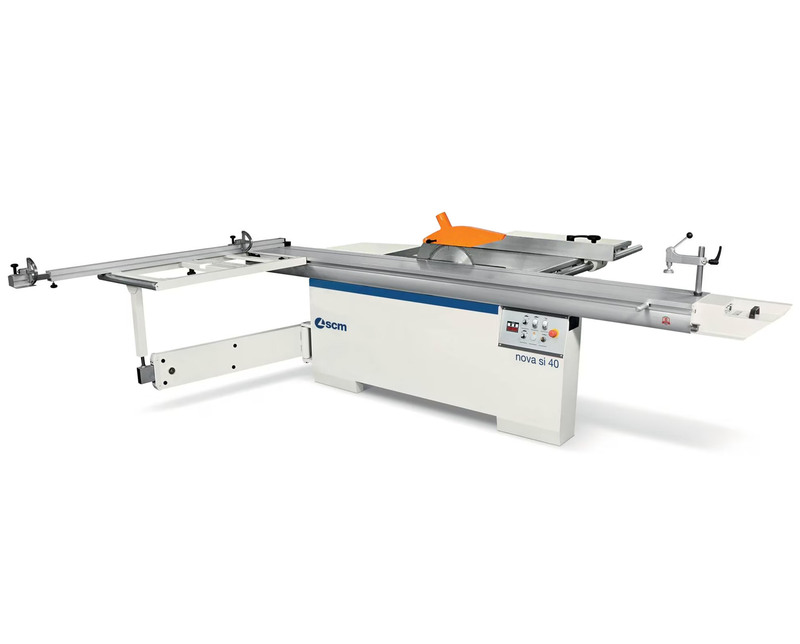

FEATURES:
- Cast iron saw unit, with lifting system by means of "dove-tail" guideways and tilting on high rigidity sliding
side trunnions, complete with scoring unit with independent motor and external setting up
- Anodized aluminium alloy carriage (dimensions 360 x 2600 mm) sliding on hardened steel guides, which are fixed on
the carriage by means of mechanical bending system
- Squaring frame (dimensions 1200 x 650 mm) with:
* telescopic fence with 2 flip-over stops and metric rule tilted towards the operator
* eccentric clamp
* swinging arm support
* idle roller to facilitate the panel loading/unloading
- Dedicated saw parallel fence with:
* "high rigidity" ; cast iron fence support
* micrometric adjustment and cam-locking system
* rectified steel round sliding bar, 45 mm diameter
- Readout of sawblades tilt on the machine front side
READY 3 UP; version (3 axes)
Powered parallel fence with electronic programmer complete with:
- position readout on encoder
- adjustment by means of recirculating ball screws
- continuously adjustments by means of pushbuttons or
automatic positionings
- possibility of incremental positionings
- possibility of fence exclusion
- 1270mm cutting width
Powered and programmed movement
of blade unit lifting and tilting
* mobile control panel
Squaring fence with no. 2 LCD readouts for stops position
- Each stop with micrometric adjustment is equipped with
- electronic digital readout with detecting system on
- magnetic band and readout on LCD display.
TECHNICAl SPECIFICATION:
- Max cutting height at 90���? (mm) : 136 with blade 400
- Max cutting height at 45���? (mm) : 97 with blade 400
- Blade tilt (degrees) : 45
- Blades lifting and tilt : manual
- Main blade rotating speed (rpm) : 3500 / 4000 / 5000
- Scoring unit rotating speed (rpm) : 9200
- Saw unit motor power kW (HP) 50Hz : 5 (6,6)
- Scoring unit motor power[S1] kW (HP) 50Hz : 0,55 (0,75)
- Squaring capacity: w. 3200 mm carriage : 3200x3200
- Cutting width on parallel fence (mm) : 1270
Exhaust outlet diameter
- at the base (mm) : 120
