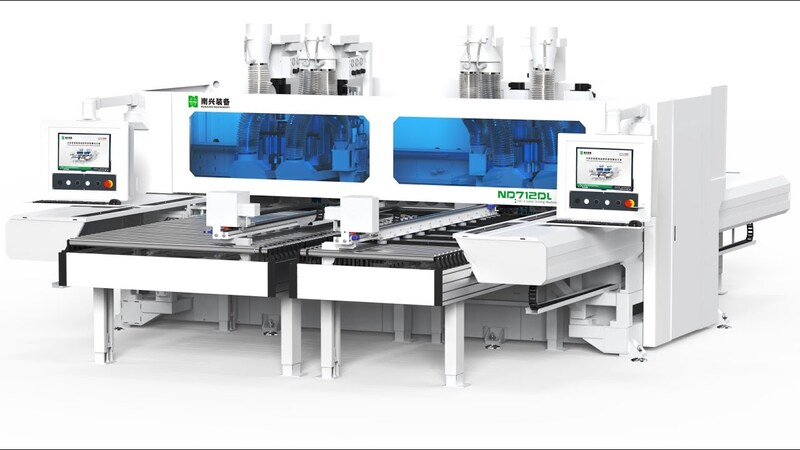

CNC 6-Sided Drilling Machine with Double Work Station ND712DL(650+650)
TECHNICAL SPECIFICATIONS
- Total power : 48.36KW
- Machine size : 7,400*4,470*2,380mm
- Power supply : 415V/50Hz3PH/415V/60Hz3PH
- Air supply : 0.6-0.7MPa
- Total weight : 6,300Kg
- Control system : SYNTEC
- Panel Length : 200-3,000mm
- Panel Width : 50-650mm
- Panel thickness : 10-60mm
- Max.traveling speed (X/U) axis : : 135m/min
- Max.traveling speed Y axis : : 75m/min
- Max.traveling speed Z axis : : 30m/min
- Max.traveling speed (X/U) axis : : 135m/min
- Transmission mode X & Y : Rack and pinion
- Transmission mode Z : Ball screw rod
Drilling blocks
- Boring block qty : Top 2+2 , Bottom1+1
- Vert.drillsqty(top) : 19*4
- Horiz.drills qty(top) : X:3×8+Y:2x4
- Vert.drillsqty(Bottom) : 9x2
- Max. drill diameter : 35mm Dia.
- Drill spacing : 32mm
- Rotation speed : 5000rpm
- Shank diameter : 10mm
- Main spindle qty : 4*ER32
- Main spindle power : 4*3.5kw max.18000rpm
