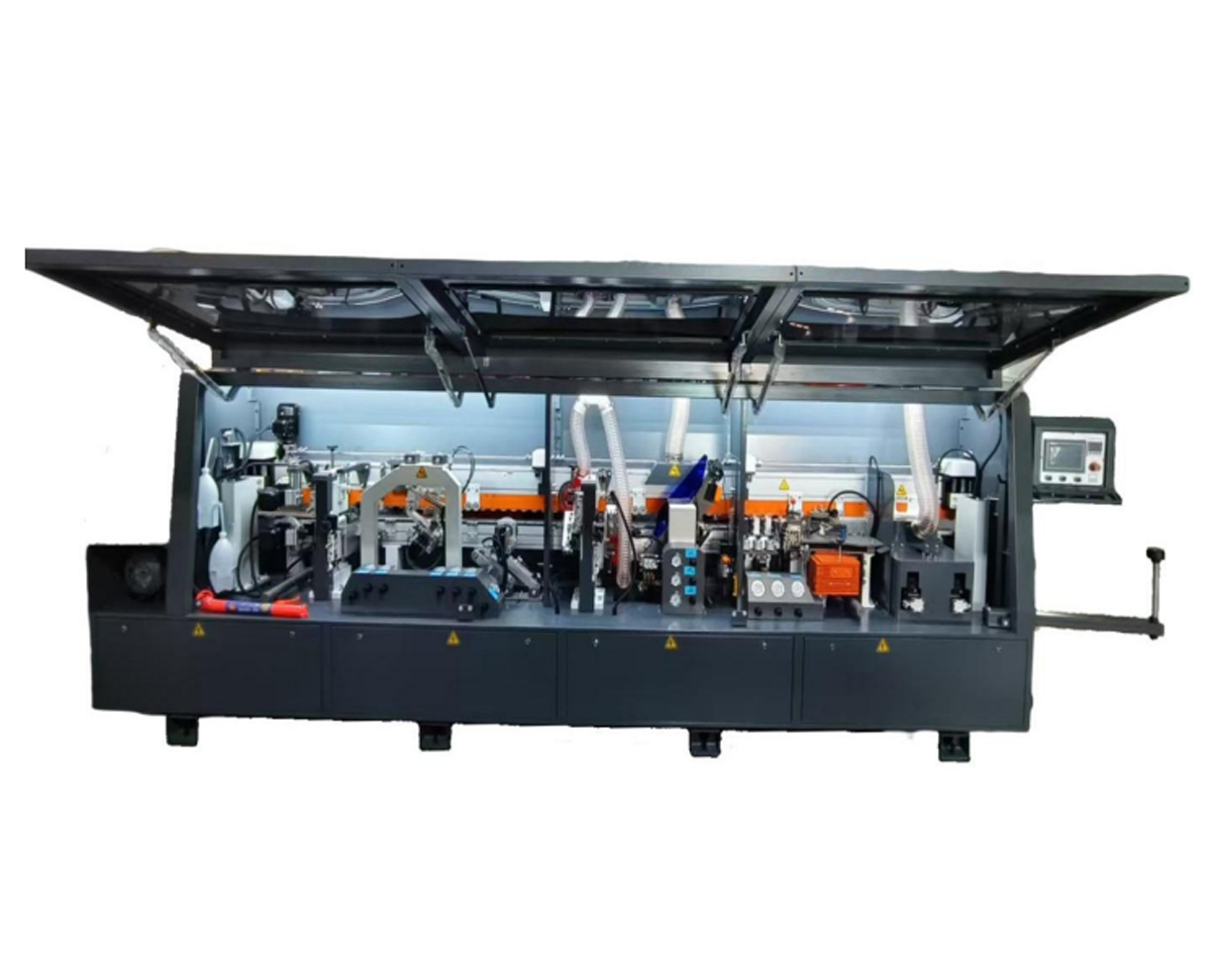

MAs Automatic Edge Bnder [Pre-milling | Gluing(EVA) | End Cutting | Profile trimming | Corner Rounding | Scraping | Polishing]
₹1,450,000.00 ₹1,812,500.00
Available on Request
Features: - 7-inch Control Screen - Encoder control - Pre-milling(Double Motor) - EVA Glue Pot - End cutting - Profile trimming - Corner Rounding - Scraping - Polishing Technical Specifications: - Panel length ≥120mm - Panel width ≥50mm - Panel thickness 9-60mm - Edge tape Width 13-63mm - Feeding speed: 18-24m/min. Min. working width: 50mm - Thickness of Workpiece: 9~60mm - Thickness of tape: 0.4~3mm - Total Power: 16.3KW - Rated air pressure: 6.5kg/m3 - Dimension(mm) 5650*780*1600
