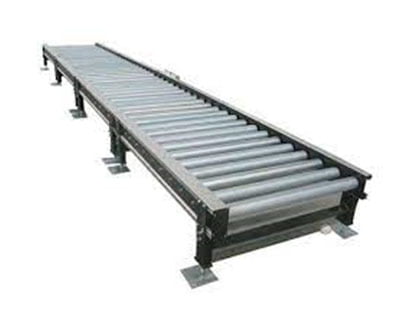

Upward Roller Conveyor 800 mm Width
₹33,000.00 ₹41,250.00
Warranty
12 Months GST Extra
18% Available on Request
- Conveyor Length: 1000 mm
- Number of Rollers per Conveyor: 6 Nos
- Maximum Height of the Conveyor: 250mm From GL
- Adjustable height: +/- 20 mm maximum
TECHNICAL SPECIFICATION
- Roller Brand Name: Interroll
- Roller Diameter in MM: 76
- Roller Length in MM: 800
- Roller Thickness in MM: 2.5
- Roller Coating: Zinc Plated
- Roller Pitch in MM: 200
- Bearing Size: SKF 6205
- Load per meter in KG: 800
- Roller Safety Cap: Dust Proof metal Cap
STRUCTURE DETAILS
- Leg structure Size: 50X50X2
- Roller Mounting frame size: 5mm L bend Plate
- Height Adjustment Option: 50MM
- Conveyor Structure Height: 350
- Hardware Material: TVS Allen bolts
- Paint Detail: 100Micron Powder coated
- Vibration Control Option: Vibrating Proof Pad
APPLICATION: Only for Wooden Panels ( Not for Metal)
