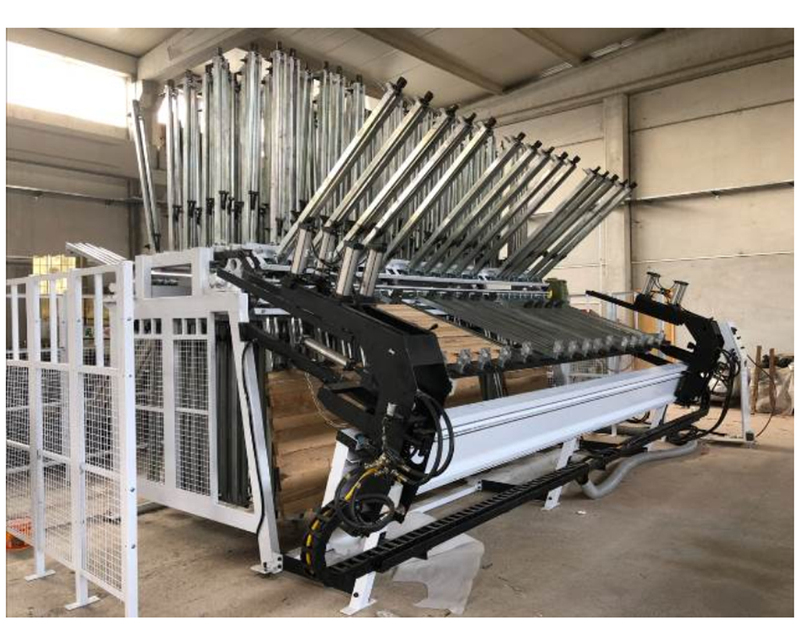

KTCC Heavy-duty Clamp Carrier 6 working sections
₹3,825,000.00 ₹4,781,250.00
Available on Request
TECHNICAL SPECIFICATIONS:
- Heavy-duty type clamp carrier.
- Hydraulic tightener system.
- Working section: 6.
- Number of clamp per section:8.
- Total number of clamp: 48.
- Clamp opening distance: 950mm
- Clamp height: 90mm
- Machine working length: 3100mm
- Rotation drive motor: 1.5kw x 1pc
- Hydraulic motor: 3.75kw*1pc
- Heavy duty hydraulic tightener arm: 1 set
- Working voltage: 415V / 50Hz / 3Phase
- Hydraulic oil type: ISO 46 (Not included)
- Pneumatic pressure: 6kg/cm2
