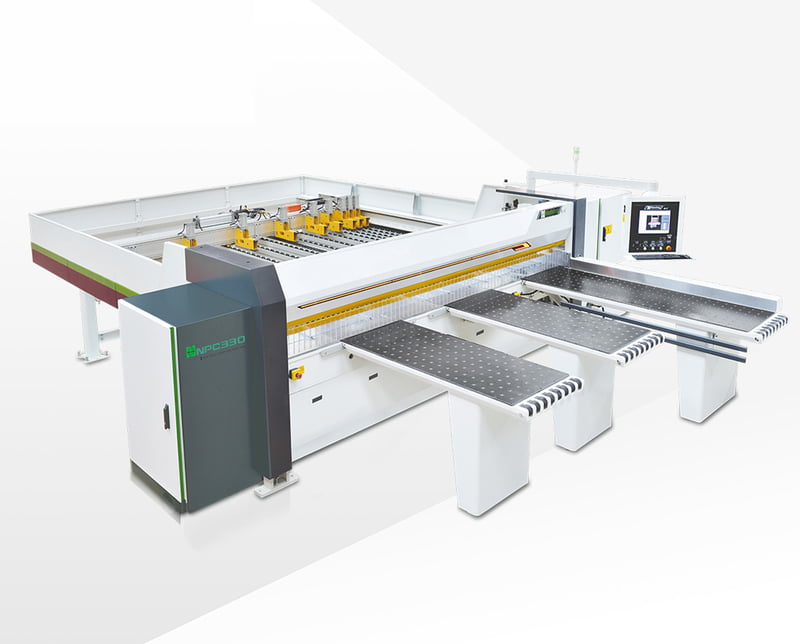

Computer Panel High Speed Saw Printer+Software NPC330 (3300x90mm)
₹3,650,000.00 ₹4,562,500.00
Warranty
12 Months Country of origin
China GST Extra
18% Available on Request
Highlights
- Pressure beam automatically self-adjusted according to the total height of panels, to shorten the travel range, hence higher efficiency.
- Saw carriage automatically moved to fit based on the width of panel, reduces travel distance.
- Both main saw and scoring saw with independent movements of up and down, also main saw automatically self-adjusted minimizing the lifting height for efficiency besides making best finish.The setting of the scoring saw blade to the main saw is carried out via the operating terminal.
- Scoring saw movements of up and down, as well as front and back, adjustable by software offering intelligent, fast, and easy elements.
- Quick exchange of main saw blade, ideal design for operator.
- Device fixed within saw carriage to push from side of board when running to cut, even for thin and soft board, at the same time to guide alignment for perfect square cut.
- Powerful software so easy to use, including managing the work process with detailed reports, simulating cutting patterns, showing any error message, printing bar code and many more advantages, also user friendly HMI, making whole machine much reliable.
FEATURES
- Air float feed table
- Side operation rod - Pressure Beam
- Hand Protector
- Piano dust cover
- Side alignment
- Gripper
- Anti-dropping device
- Sawing Carriage
- Dust Collection Poart 150mmx3no.
- Auto Lubrication System
- User-friendly HMI IPC with USB ports
- Optimization software NXPareto
- Operation Software
- Printer
TECHNICAL SPECIFICATIONS:
- Max. cutting length : 3300mm
- Max. cutting thickness : 90mm
- Main Saw Motor power : 15kw
- Main Saw Rotating speed : 3910rpm/min
- Saw blade diameter : 380mm (Max400mm)
- Saw blade shaft diameter : 60mm
- Rotating speed : 4,300rpm/min
- Saw blade diameter : 200mm
- Saw blade shaft diameter : 45mm
- Saw carriage Motor power : 2kw
- Saw carriage Forward speed : 100m/min
- Saw carriage Backward speed : 120m/min
- Automatic feeding motor : 2kw
- Max. feeding speed : 85m/min
- IPC 15’’ Windows 7 : USB port: 4 pcs
- Air Requirement : 0.6 MPa
- Dust extraction Diameter : 150mm*3; 28m/min
- Power supply : AC3P380V/50Hz
- Total power : 21.5kw
- Length *Width *Height : 6900 x 5495 x 1830mm
- Net weight : 5300kg
