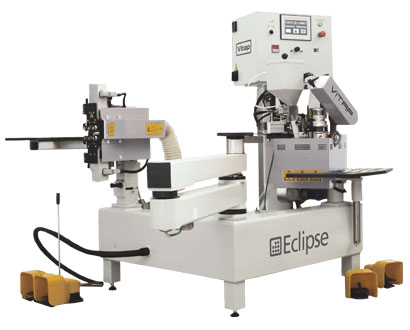

Vitap Semi Automatic Contour Edgebander
₹3,325,000.00 ₹4,156,250.00
Warranty
12 Months GST Extra
18% Available on Request
For shaped, concave, convex and stright panels 10-60 mm (edging) thickness 1-3 mm band thickness
TECHNICAL SPECIFICATION:
- TEFLONED GLUEING STATION (EVA glue)
- GLUE POT kg1 - QUICK REMOVAL GLUE POT SUSTEM
- Glue and tape application on big and small shaped panels
- Equipped with glue pot with 1 Kg capacity
- 2 rollers to copy the shape of the piece
-1 tilting support roller to eble the exit of the panel after banding
- Set up of the glue temperature
- Automatic guillotine for coiled material up to 3 mm x 45 mm
THREE KIND OF WORKS:
- By Encoder
- By Encoder + laser
- By Encoder to overtake the tape to cut it and to heat it
- New laser system for precision cutting to band closed peaces
- Slowing-down feeding speed by foot pedal and laser with exterl potentiometer and 0,37 motor
- Color touch screen 7"
- Trimming station with pneumatic tilting, to allow edgebanding of big pieces;
- Trimming unit with: - 2 motors 0,5 Kw high frequency 15000 RPM with up/down and front copiers and pneumatic cylinder to lift the motors approaching the pieces to be trimmed
- 2 brazed cutters R=3, Z=6
- Raisable working table for small panels
- REINFORCED ARM
- CE standards INCLUDES
- 109473 : WIDE SHOULDER ROLLER TO ENSURE BETTER ADHERENCE
- 109474 : ADDITIOL LOWER ROLLER WITH SUPPORT TO ENSURE BETTER ADHERENCE
- 109475 : RECTANGULAR WORK PLAN FOR ExECUTING OF BIG PANELS
