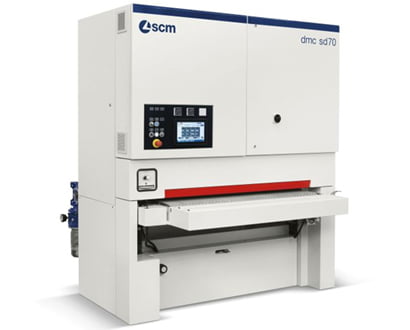

Scm Automatic Wide Belt Sander SCM Automatic Wide Belt Sander DMC-SD-70(C"-RSC135) R013201
₹4,525,000.00 ₹5,656,250.00
Available on Request
TECHNICAL DATA:
- working width [mm] :1350
- min/max. working thickness (mobile table) [mm] :4-170
- min/max. working thickness (fixed table) [mm] :4-200
- sanding belt width [mm] :1370 / 2620
- main motor power [kW (HP)] :11 (15)
- Feed speed [m/min] :4,5/9
BASIC MACHINES STANDARD EQUIPMENT:
- Security execution
- dmc sd 70 composition RCS 135
- with 1st “R” group (roller) and 2nd “CS” combined group (roller/pad)
- Volt 400 EU
- Frequency 50 Hz
- "C" version for RCS 135
- Infeed and outfeed support rollers for long and short workpieces
- "RA" Helicoidal grooved steel calibrat. roller-1st group
- Oscillating belt cleaning blower on the 1st group
- Oscillating belt cleaning blower on the 2nd group
- GSF/150 Outfeed fix buffing unit
- 15kW (20Hp) motor - 1st group
- 15 kW (20 hp) - 2 speeds motor - 2nd group (9/18 m/sec)
- Belt feed with1,5 kW (2 hp) mechanical speed variator
- Pallet + nylon - 135 version
- English machine plate
MACHINE INCLUDES:
- N. 1 Security execution
- N. 1 dmc sd 70 composition RCS 135
- N. 1 Volt 400 EU
- N. 1 Frequency 50 Hz
- N. 1 "C" version for RCS 135
- N. 1 Infeed and outfeed support rollers for long and short workpieces
- N. 1 "RA" Helicoidal grooved steel calibrat. roller-1st group
- N. 1 Oscillating belt cleaning blower on the 1st group
- N. 1 Oscillating belt cleaning blower on the 2nd group
- N. 1 GSF/150 Outfeed fix buffing unit
- N. 1 15kW (20Hp) motor - 1st group
- N. 1 15 kW (20 hp) - 2 speeds motor - 2nd group (9/18 m/sec)
- N. 1 Belt feed with1,5 kW (2 hp) mechanical speed variator
- N. 1 Pallet + nylon - 135 version
- N. 1 English machine plate
