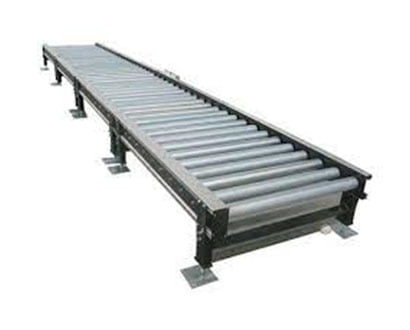

Upward Roller Conveyor 600 mm Width

₹30,600.00 ₹38,250.00
Warranty
12 Months
GST Extra
18%
Available on Request
- Conveyor Length: 1000 mm
- Number of Rollers per Conveyor: 6 Nos
- Maximum Height of the Conveyor: 250mm From GL
- Adjustable height: 25-30 mm maximum

TECHNICAl SPECIFICATION
- Roller Brand Name: Interroll
- Roller Diameter in MM: 76
- Roller Length in MM: 600
- Roller Thickness in MM: 2.5
- Roller Coating: Zinc Plated
- Roller Pitch in MM: 200
- Bearing Size: SKF 6205
- Load per meter in KG: 800
- Roller Safety Cap: Dust Proof metal Cap
STRUCTURE DETAILS
- Leg structure Size: 50X50X2
- Roller Mounting frame size: 5mm L bend Plate
- Height Adjustment Option: 25-30 MM
- Conveyor Structure Height: 250
- Hardware Material: TVS Allen bolts
- Paint Detail: 100Micron Powder coated
- Vibration Control Option: Vibrating Proof Pad

APPLICATION: Only for Wooden Panels ( Not for Metal)
