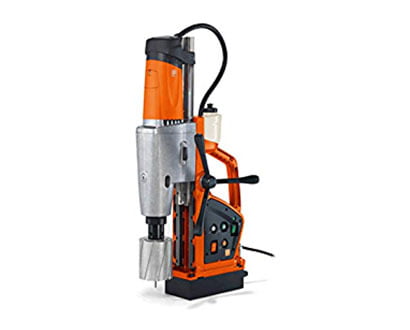

Fein Universal Magnetic Core Drill KBU-110-4M

₹250,000.00 ₹312,500.00
Warranty
6 Months
GST Extra
18%
Available on Request
High-performance and powerful 4-speed universal magnetic core drill with forward/reverse running, MT4 tool mounting and maximum functionality for the toughest drilling jobs in the workshop.

TECHNICAL DATA

- Input : 1,700 W
- Output : 850 W
- Load speed in speed 1 : 60 / 120 rpm
- Load speed in speed 2 : 90 / 170 rpm
- Load speed in speed 3 : 150 / 300 rpm
- Load speed in speed 4 : 230 / 430 rpm
- Idling speed in speed 1 : 100 / 190 rpm
- Idling speed in speed 2 : 160 / 290 rpm
- Idling speed in speed 3 : 270 / 500 rpm
- Idling speed in speed 4 : 420 / 750 rpm
- Tool Holder : MK 4
- Carbide core drill bit max.������ : 110 mm
- HSS core drill max.������ : 80 mm
- Core drill, drilling depth max : 100 mm
- Twist drill max.������ : 40 mm
- Tapping : M 36
- Countersinking max.������ : 60 mm
- Reaming max.������ : 36 mm
- Core drill holder : Weldon 32
- Stroke : 280 mm
- Total stroke range : 400 mm
- Magnetic holding power : 23,000 N
- Magnetic foot dimensions : 240 x 120 mm
- Cable with plug : 4 m
- Weight according to EPTA : 39.00 kg

INCULDES

1 coolant tank
1 safety strap with ratchet
1 swarf hook
2 centring pins, diameter of 6.35 x 125 mm and diameter of 7.98 x 184 mm
1 contact guard
1 drift key
2 x 5 and 6 mm hexagon socket wrench
1 additional handle
1 case

TEST
  • FEIN 1700 W high-power motor with high torque for heavy-duty drilling work.
  • For tough use thanks to outstanding quality of workmanship and swivel-mounted motor cable protective hose.
  • Tool with extra large stroke range for all drilling work, such as core, twist and tap drilling, countersinking and reaming.
  • Mechanical 4-speed gearbox.
  • High magnetic holding force.
  • Torque support for high stability.
  • Tilt sensor.
  • Slipping clutch torque.
  • Convenient magnetic holding force display.
  • Speed reduction.
  • Reversible.
  • MT4 tool mounting.
  • Integrated coolant tank.
  • Personal safety switch.
