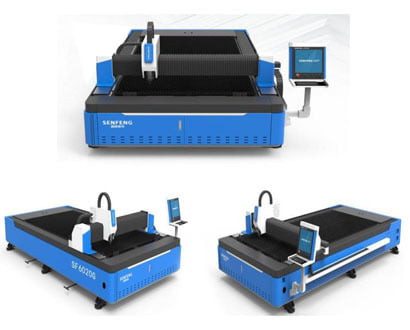

Fiber Laser Cutting - 3000W
₹6,430,000.00 ₹8,037,500.00
Available on Request
TECHNICAL PARAMETERS:
- Work Area : 6000*2000mm/19.6ft*6.56ft
- X-axis Travel : 2000mm/6.56ft - Y-axis Travel : 6000mm/19.6ft
- Z-axis Travel : 220mm/0.72ft
- Positioning accuracy : +/- 0.05mm
- Repeated positioning : +/- 0.02mm
- Maximum speed : 80m/min
- Maximum acceleration : 0.8G
- Machine Total weight(KG) : 4150
- Table maximum load(KG) : 2000
- Outline size?mm) : 7866*3450*1800mm
- Power parameters : Three-phase AC 380V 50Hz
- Protection Level of Total Power Supply : IP54
CONFIGURATION:
- Laser device : 3000w Raycus (1Set)
- Laser head : SENFENG/WSX (1Set)
- Transmission : LAPPING/SENFENG (4Set)
- Machine bed accessories : SENFENG (1Set)
- Motor reducer : - EREFAT (3Set)
- Electrical and pneumatic : - SIEMENS SMC/AIRTAC )1Set)
- Server motor and driver : - INOVANCE/DELTA/SCHNEIDER (5Set)
- Water cooling : - HANLI (1Set)
- FSCUT system : - FSCUT 2000 (1set)
