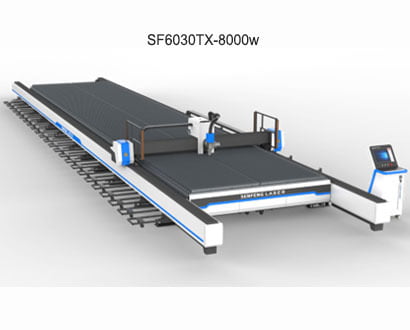

Bevel Fiber Laser Cutting Machine 8000w SF6030TX-8kW

₹28,800,000.00
Warranty
24 Months
Country of origin
China
GST Extra
18%
Available on Request
TECHNICAL SPECIFICATIONS:
  • 6000*3000mm working area
  • 8000w MAX/RAYCUS source
  • Single table+ open type machine
  • Cypcut control system with English
  • Bolts laser head
  • Yaskawa-S servo motor
  • Water chiller, smoke fan
  • Voltage stabilizer

TECHNICAL PARAMETERS
  • Work Area : 6000*3000mm
  • X-axis Travel : 3000mm
  • Y-axis Travel : 6000mm
  • Z-axis Travel : 300mm
  • Positioning accuracy :  ±0.1/10000mm
  • Repeated positioning : ±0.05mm
  • A/B-axis swing angle :  A-axis±50°,B-axis±45°
  • Maximum speed of one single axis : A-axis 64r/min,B-axis75r/min
  • Maximum speed : 80m/min
  • Maximum acceleration : 0.6G
  • Machine Total weight(KG) : 7600
  • Table maximum load(KG) : 4200
  • Outline size(mm) : 8590*4756*1887mm
  • Power parameters : 3 phase 380V 50Hz
  • Protection Level of Total Power Supply IP54

CONFIGURATION
  • Laser source 1 set : MAX/ Raycus
  • Laser head 1 set : BOCI
  • Transmission 4 set : LAPPING/SENFENG
  • Machine bed accessories 1 set : SENFENG
  • Motor reducer 3 set : MOTOREDUCER
  • Electrical and pneumatic 1 set : SCHNEIDER /SMC/AIRTAC
  • Server motor and driver 4set : YASKAWA-S
  • Water cooling 1 set : HANLI
  • five-axis CNC laser cutting system : 1 set Cypcut
