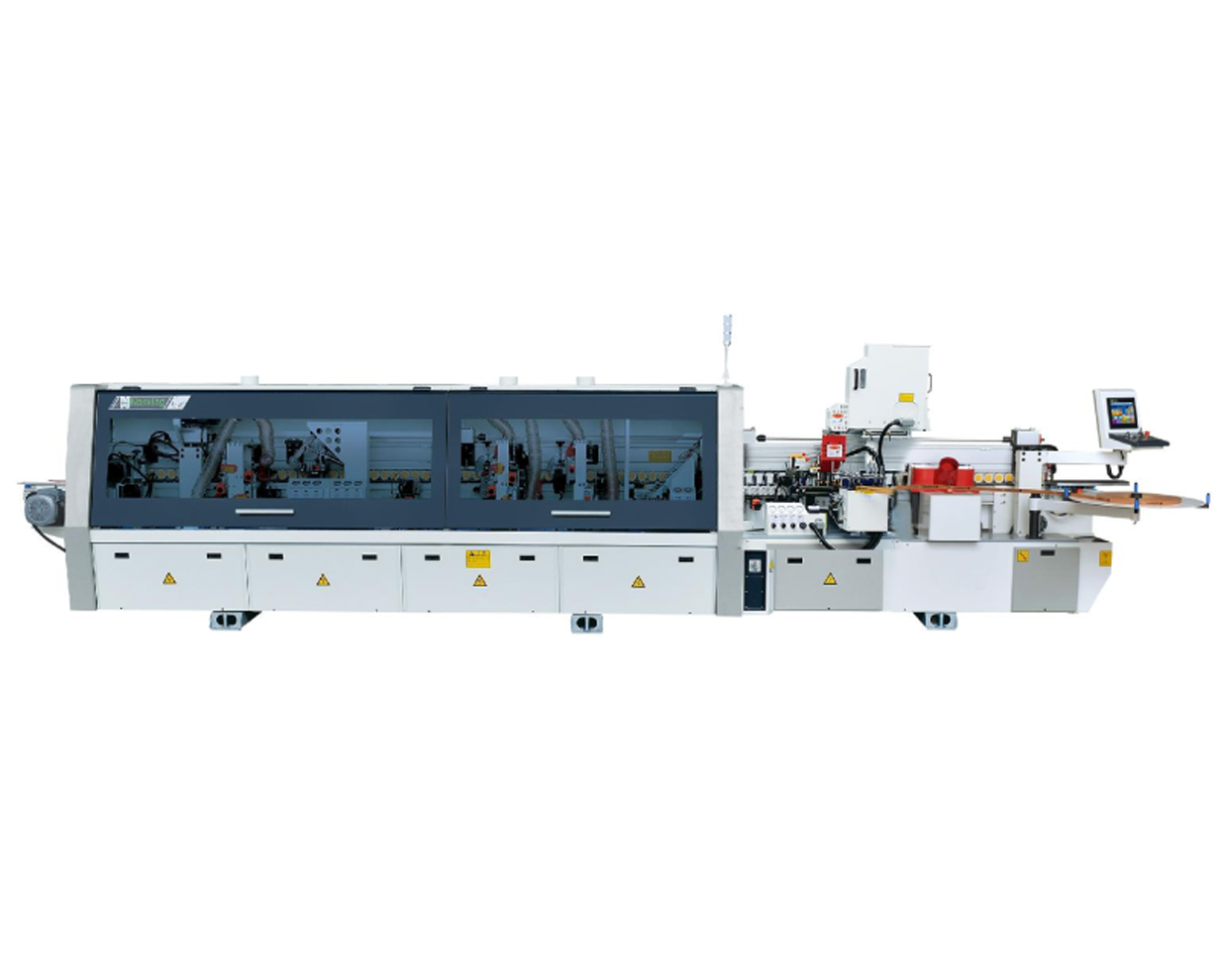

Nanxing Edge Banding Machine (solid wood) NB6J-SW(415V) w/o Corner Rounding
₹3,100,000.00 ₹3,875,000.00
Warranty
12 Months Country of origin
China YouTube Video 1
https://youtu.be/Ca5-KjNlQx0 YouTube Video 2
https://youtu.be/ucAC-m15AsA GST Extra
18% Available on Request
SPECIFICATIONS
suitable for both PVC and solid strip processing
- Pre-milling (63mm)
- Pre-heating
- Upper Gluing Unit with pre-melter
- Solid strip feeding
- Pressing
- End cutting
- Rough trimming
- Fine trimming
- Profile scraping
- Buffing
- Pneumatic Gate
- Pre-Set for PUR
Technical DATA:
- Panel length : ≥120 mm
- Panel width : ≥80 mm
- Mini. Panel size : 120× 80mm
- Panel thickness : 10-60 mm
- Wood strip : 8mm thickness; 50-60mm height
- Edge tape thickness : 0.4-3 mm
- Feeding speed : 16/20/24 m/min
- Power supply : 415V / 50hz / 3P
- Air pressure required : 0.7MPa
- Operation system : 10" touch screen
- Dust collector : Φ125mm×5
- Total power : 24 Kw
- Approx. weight : 3,670 kg
- Overall dimension : 9,800*1,450*1,650
